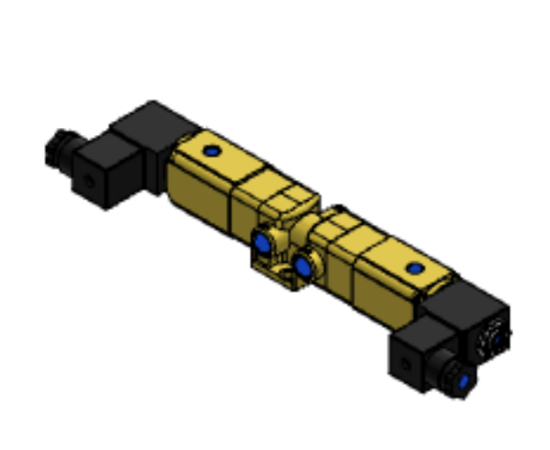

Versa - VXX-8303-HC-A120 DIRECTIONAL CONTROL VALVE, SELECTOR, BRASS, 120V60HZ V - 1/4" brass

VERSA V-SERIES DIRECTIONAL CONTROL VALVE

The Original, often-copied, genuine V-Series directional control valve. The Versa brass V series of valves is suited for practically all pneumatic directional control applications. The V series are made for trouble-free performance under the most exacting conditions. Integrity of design makes them adaptable to a maximum number of applications with a minimum of components. This is possible through the modular approach to valve construction, which allows valve bodies and actuating devices to be interchanged end for end and valve for valve in many cases. The modular approach to valve design makes it possible for many thousands of viable valving variations.

Product Features

• 1/4" NPT body ports
• Constructed of forged brass for long-lasting, corrosion-resistant strength. Functions without fail when exposed to mud, water, salt, grime, oils and chemicals
• Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
• Buna-N/nitrile rubber o-ring seals perform reliably with oil, fuel, and other chemicals over broad temperature range

Solenoid Features

• Solenoid coil connection: DIN Connector with PG9 cord grip
• 100% Leak Tested • 10-Year Warranty

• Voltage120 V 60 Hz ±10% (A120)
• Inrush 127 mA
• Holding 98 mA
• Resistance 647 Ω
• Ingress Protection IP65
• Coil Class
• Class F
• Protection General purpose
• Solenoid Housing Material Engineered Polymer
• Solenoid Seal Material Buna
• Solenoid Connection Din Connector (PG9 cord grip)
