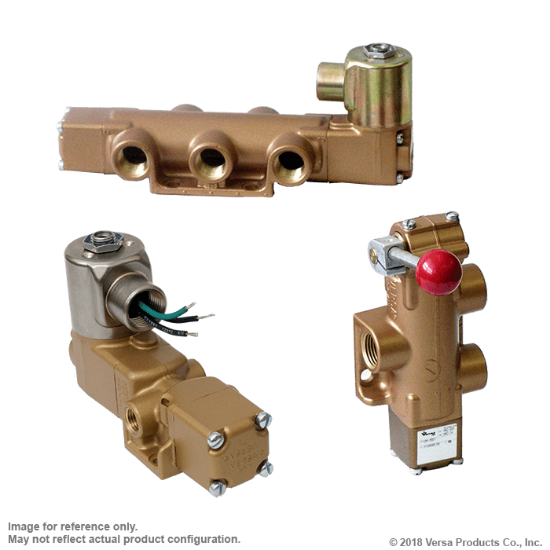

Versa - VXX-3503-HC-167-D024 DIRECTIONAL CONTROL VALVE, 3-WAY, NPB, 24VDC V - 1/2" brass

VERSA V-SERIES DIRECTIONAL CONTROL VALVE

The Original, often-copied, genuine V-Series directional control valve. The Versa brass V series of valves is suited for practically all pneumatic directional control applications. The V series are made for trouble-free performance under the most exacting conditions. Integrity of design makes them adaptable to a maximum number of applications with a minimum of components. This is possible through the modular approach to valve construction, which allows valve bodies and actuating devices to be interchanged end for end and valve for valve in many cases. The modular approach to valve design makes it possible for many thousands of viable valving variations.

Product Features

• 1/2" NPT body ports
• Constructed of forged brass with electroless nickel plating for increased wear resistance, hardness and corrosion protection. Long-lasting performance in the most demanding conditions
• Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
• Buna-N/nitrile rubber o-ring seals perform reliably with oil, fuel, and other chemicals over broad temperature range

Solenoid Features

• Solenoid coil connection: DIN Connector with PG9 cord grip
• 100% Leak Tested • 10-Year Warranty
