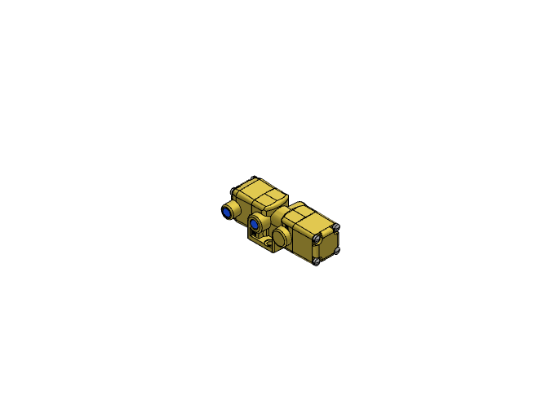

Versa - VPS-2302-NGST VALVE, 2-WAY, BRASS V - 1/4" brass
Versa - VPS-2302-NGST VALVE, 2-WAY, BRASS V - 1/4" brass
SKU: VS-VPS-2302-NGST
Manufacturer part number: VPS-2302-NGST
VERSA V-SERIES DIRECTIONAL CONTROL VALVE
The Original, often-copied, genuine V-Series directional control valve. The Versa brass V series of valves is suited for practically all pneumatic directional control applications. The V series are made for trouble-free performance under the most exacting conditions. Integrity of design makes them adaptable to a maximum number of applications with a minimum of components. This is possible through the modular approach to valve construction, which allows valve bodies and actuating devices to be interchanged end for end and valve for valve in many cases. The modular approach to valve design makes it possible for many thousands of viable valving variations.
Product Features
- 1/4" NPT body ports
- Constructed of forged brass for long-lasting, corrosion-resistant strength. Functions without fail when exposed to mud, water, salt, grime, oils and chemicals
- Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
- Low-temperature Buna o-ring seals for low-temperature applications down to -40°F
100% Leak Tested • 10-Year Warranty
SpecificationsLead Time (Working Days): | 8 8 |
---|
Actuation | Pilot | Spring Return |
---|
Function | 2-way, 2-pos, NO |
---|
Media(S) | Air/Inert Gas, Natural Gas |
---|
Temp Range (F) | -55°F to 200°F |
---|
Temp Range (C) | -48°C to 93°C |
---|
Flow | 1.8 Cv |
---|
Port Size/Type | 1/4" NPT body ports |
---|
Pressure Range (PSI) | VAC-130 psi |
---|
Pressure Range (BAR) | VAC-8.96 bar |
---|
Pilot Type | Remote Pilot |
---|
Pilot Range (PSI) | 55-200 psi |
---|
Pilot Range (BAR) | 3.79-13.8 bar |
---|
Body & Internal Parts | Brass |
---|
Seal Mtl | Low Temperature Buna |
---|
Filter | 0 |
---|
Series | V Series - 1/4" brass |
---|
Weight (Kg) | 0.84 kg |
---|
| |
---|
Options included | Low temperature Buna |
---|
