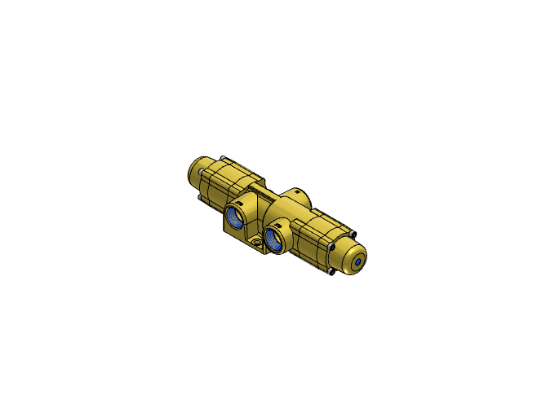

Versa - VJJ-7703-WS VALVE, DIVERTER, BRASS V - 1" brass
Versa - VJJ-7703-WS VALVE, DIVERTER, BRASS V - 1" brass
SKU: VS-VJJ-7703-WS
Manufacturer part number: VJJ-7703-WS
VERSA V-SERIES DIRECTIONAL CONTROL VALVE
The Original, often-copied, genuine V-Series directional control valve. The Versa brass V series of valves is suited for practically all pneumatic directional control applications. The V series are made for trouble-free performance under the most exacting conditions. Integrity of design makes them adaptable to a maximum number of applications with a minimum of components. This is possible through the modular approach to valve construction, which allows valve bodies and actuating devices to be interchanged end for end and valve for valve in many cases. The modular approach to valve design makes it possible for many thousands of viable valving variations.
Product Features
- 1" NPT body ports
- Constructed of forged brass for long-lasting, corrosion-resistant strength. Functions without fail when exposed to mud, water, salt, grime, oils and chemicals
- Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
- Buna-N/nitrile rubber o-ring seals perform reliably with oil, fuel, and other chemicals over broad temperature range
100% Leak Tested • 10-Year Warranty
SpecificationsLead Time (Working Days): | 20 20 |
---|
Actuation | Double Pilot Spring Center |
---|
Function | Diverter (1 inlet-2 outlets), 3-pos, Blocked Center [7-way] |
---|
Media(S) | Water |
---|
Temp Range (F) | -10°F to 200°F |
---|
Temp Range (C) | -23°C to 93°C |
---|
Flow | 11.1 Cv |
---|
Port Size/Type | 1" NPT body ports |
---|
Pressure Range (PSI) | 0-100 psi |
---|
Pressure Range (BAR) | 0-6.90 bar |
---|
Pilot Type | Remote Pilot |
---|
Pilot Range (PSI) | 70-200 psi |
---|
Pilot Range (BAR) | 4.83-13.8 bar |
---|
Body & Internal Parts | Brass |
---|
Seal Mtl | Buna |
---|
Filter | 0 |
---|
Series | V Series - 1" brass |
---|
Weight (Kg) | 6.31 kg |
---|
| |
---|
Options included | Super Water Valve See Beulletin 132 Buna seals |
---|
