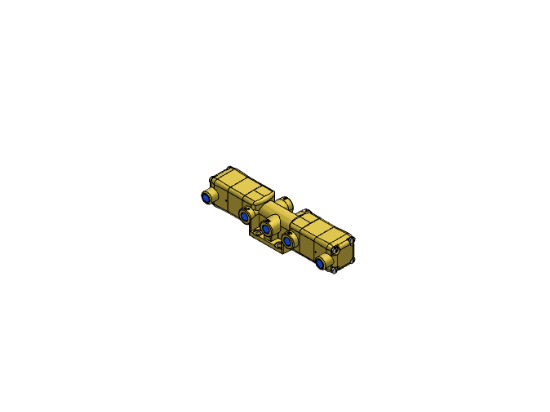

Versa - VJJ-5403 VALVE, 5-WAY, BRASSEMBLY V - 1/2" brASSEMBLY

Versa - VJJ-5403 VALVE, 5-WAY, BRASSEMBLY V - 1/2" brASSEMBLY
Manufacturer: Versa
SKU: VS-VJJ-5403
Manufacturer part number: VJJ-5403
$282.10 Call to Order

VERSA V-SERIES DIRECTIONAL CONTROL VALVE

The Original, often-copied, genuine V-Series directional control valve. The Versa brass V series of valves is suited for practically all pneumatic directional control applications. The V series are made for trouble-free performance under the most exacting conditions. Integrity of design makes them adaptable to a maximum number of applications with a minimum of components. This is possible through the modular approach to valve construction, which allows valve bodies and actuating devices to be interchanged end for end and valve for valve in many cases. The modular approach to valve design makes it possible for many thousands of viable valving variations.

Product Features

  • 3/8" NPT body ports
  • Constructed of forged brass for long-lasting, corrosion-resistant strength. Functions without fail when exposed to mud, water, salt, grime, oils and chemicals
  • Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
  • Buna-N/nitrile rubber o-ring seals perform reliably with oil, fuel, and other chemicals over broad temperature range

100% Leak Tested • 10-Year Warranty



Specifications
Lead Time (Working Days):8 8
ActuationDouble Pilot Spring Center
FunctionDual Pressure 4-way, 3-pos, Blocked Ctr [5-way]
Media(S)Air/Inert Gas, Natural Gas
Temp Range (F)-10°F to 200°F
Temp Range (C)-23°C to 93°C
Flow3.4 Cv
Port Size/Type3/8" NPT body ports
Pressure Range (PSI)VAC-200 psi
Pressure Range (BAR)VAC-13.8 bar
Pilot TypeRemote Pilot
Pilot Range (PSI)40-200 psi
Pilot Range (BAR)2.76-13.8 bar
Body & Internal PartsBrass
Seal MtlBuna
Filter0
SeriesV Series - 1/2" brass
Weight (Kg)2.65 kg
