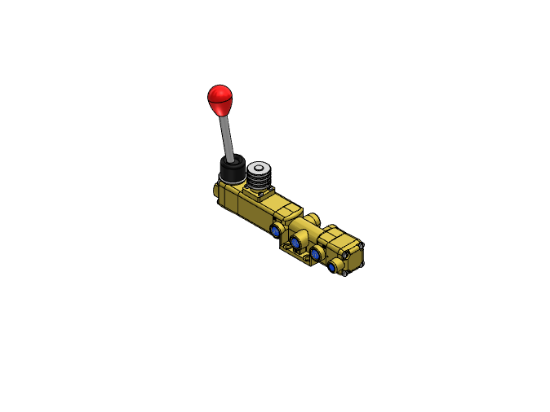

Versa - VAP-4302-181DC-3433 VALVE, 4-WAY, NPB V - 1/4" brass
Versa - VAP-4302-181DC-3433 VALVE, 4-WAY, NPB V - 1/4" brass
SKU: VS-VAP-4302-181DC-3433
Manufacturer part number: VAP-4302-181DC-3433
VERSA V-SERIES DIRECTIONAL CONTROL VALVE
The Original, often-copied, genuine V-Series directional control valve. The Versa brass V series of valves is suited for practically all pneumatic directional control applications. The V series are made for trouble-free performance under the most exacting conditions. Integrity of design makes them adaptable to a maximum number of applications with a minimum of components. This is possible through the modular approach to valve construction, which allows valve bodies and actuating devices to be interchanged end for end and valve for valve in many cases. The modular approach to valve design makes it possible for many thousands of viable valving variations.
Product Features
- 1/4" NPT body ports
- Constructed of forged brass with electroless nickel plating for increased wear resistance, hardness and corrosion protection. Long-lasting performance in the most demanding conditions
- Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
- Buna-N/nitrile rubber o-ring seals perform reliably with oil, fuel, and other chemicals over broad temperature range
100% Leak Tested • 10-Year Warranty
SpecificationsLead Time (Working Days): | 20 20 |
---|
Actuation | Pilot | Hand Lever-Latch-Spring |
---|
Function | 4-way, 2-pos |
---|
Media(S) | Air/Inert Gas, Natural Gas |
---|
Temp Range (F) | -10°F to 200°F |
---|
Temp Range (C) | -23°C to 93°C |
---|
Flow | 1.8 Cv |
---|
Port Size/Type | 1/4" NPT body ports |
---|
Pressure Range (PSI) | VAC-200 psi |
---|
Pressure Range (BAR) | VAC-13.8 bar |
---|
Pilot Type | Remote Pilot |
---|
Pilot Range (PSI) | 55-200 psi |
---|
Pilot Range (BAR) | 3.79-13.8 bar |
---|
Body & Internal Parts | Nickel Plated Brass |
---|
Seal Mtl | Buna |
---|
Filter | 0 |
---|
Series | V Series - 1/4" brass |
---|
Weight | 4.96 lb |
---|
Weight (Kg) | 2.25 kg |
---|
| |
---|
Options included | Hand lever/latch/spring ( 2pos) |
---|
| Hi-Nitrile seals |
---|
| Electroless nickel plating |
---|
| Marine Service |
---|
