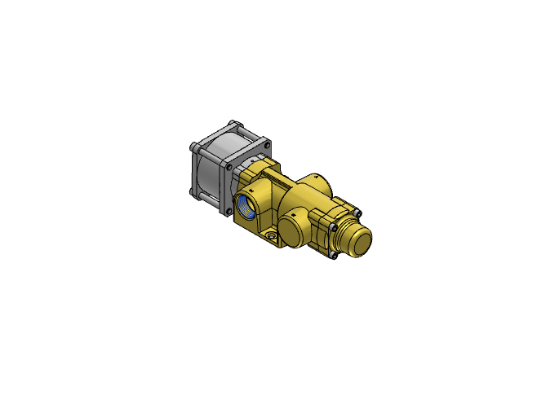

Versa - TWS-2702-S VALVE, 2-WAY, BRASS T - 1" brass

Versa - TWS-2702-S VALVE, 2-WAY, BRASS T - 1" brass
Manufacturer: Versa
SKU: VS-TWS-2702-S
Manufacturer part number: TWS-2702-S
$548.00 Call to Order

VERSA T-SERIES DIRECTIONAL CONTROL VALVE

The Versa brass T series of valves is suited for many low pressure hydraulic directional control applications. The T series are made for trouble-free performance under the most exacting conditions. Integrity of design makes them adaptable to a maximum number of applications with a minimum of components. This is possible through the modular approach to valve construction, which allows valve bodies and actuating devices to be interchanged end for end and valve for valve in many cases. The modular approach to valve design makes it possible for many thousands of viable valving variations.



Product Features

  • 1" NPT body ports
  • Constructed of forged brass for long-lasting, corrosion-resistant strength. Functions without fail when exposed to mud, water, salt, grime, oils and chemicals
  • Connects directly to pressure lines with integral, pipe threaded ports on side of valve body

100% Leak Tested • 10-Year Warranty



Specifications
Lead Time (Working Days):20 20
ActuationDiaphragm-Pilot | Spring Return
Function2-way, 2-pos, NO
Media(S)Hydraulic
Temp Range (F)0°F to 130°F
Temp Range (C)-18°C to 54°C
Flow11.1 Cv
Port Size/Type1" NPT body ports
Pressure Range (PSI)0-500 psi
Pressure Range (BAR)0-34.5 bar
Pilot TypeRemote Pilot
Pilot Range (PSI)20-50 psi
Pilot Range (BAR)1.38-3.45 bar
Body & Internal PartsBrass
Seal MtlTeflon/Buna
SeriesT Series - 1" brass
Weight10.12 lb
Weight (Kg)4.59 kg

Options includedStrong spring
