RV-3-316-085-EP

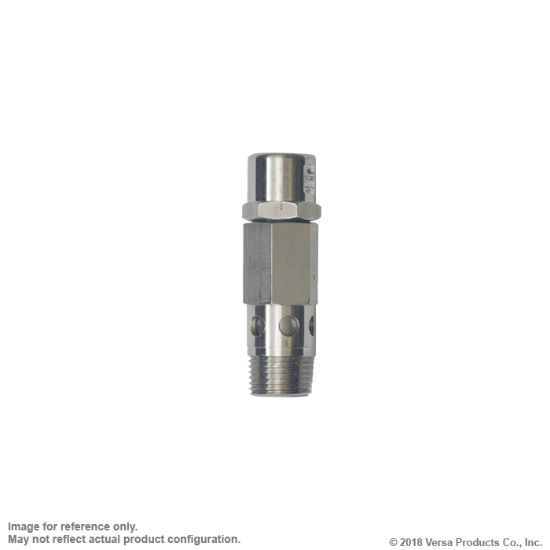

Versa RV-3-316-085-EP pressure Relief Valve (1/4" NPT), Stainless Steel

Be the first to review this product
Manufacturer: Versa
SKU: VS-RV-3-316-085-EP
Manufacturer part number: RV-3-316-085-EP
$183.80 Call to Order
We Accept Many Forms of Payments including Visa, Mastercard, Discover and Amex

Shipping and delivery times can be severely affected by product availability from vendor. Call us or write us for accurate shipping times.

Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Stainless Steel Pressure Relief Valve

The Versa stainless steel pressure relief valve is designed to withstand the toughest of conditions. Relief pressures are factory set and tested in 5 psi (0.34 bar) increments to meet your application requirements.

Product Features

  • 1/4" NPT body ports
  • Constructed of SAE 316 stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
  • Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
  • Ethylene Propylene o-ring seals resist heat, oxidation, ozone and weather in low-temperature applications: equivalent to EPR or EPM

100% Leak Tested • 10-Year Warranty

Specifications
Lead Time (Working Days):20 20
ActuationRelief pressure set at factory
Media(S)Air/Inert Gas
Temp Range (F)-60°F to 300°F
Temp Range (C)-51°C to 149°C
Flow1.3 Cv
Port Size/Type1/4" NPT body ports
Pressure Range (PSI)85 psi
Pressure Range (BAR)5.86 bar
Body & Internal Parts316 Stainless Steel
Seal MtlEthylene Propylene
SeriesAC - Relief valve
Weight0.16 lb
Weight (Kg)0.07 kg

Options Included

EP Ethylene Propylene
