NV-3-316

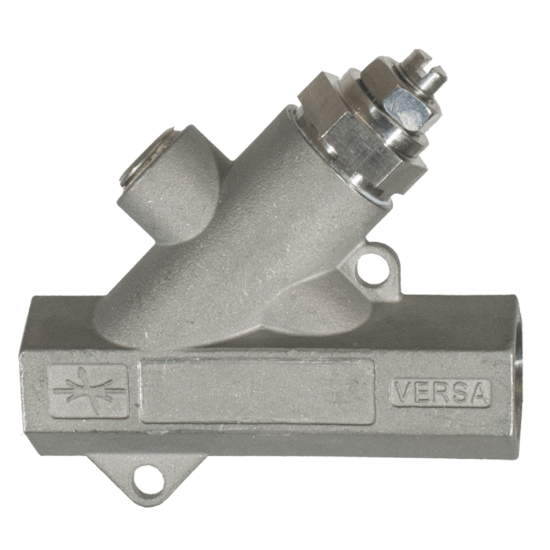

Versa NV-3-316-44 Stainless Steel Flow Control Valve, Adjustable Needle

Be the first to review this product
Manufacturer: Versa
SKU: VS-NV-3-316-44
$117.50 Call to Order
We Accept Many Forms of Payments including Visa, Mastercard, Discover and Amex

Shipping and delivery times can be severely affected by product availability from vendor. Call us or write us for accurate shipping times.

Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Stainless Steel Flow Control Valve

The Versa flow control valve (FCV) is a 316 stainless steel device that is NACE compliant that combines a check and needle valve to control the speed of pneumatic actuators and cylinders. The FCV allows unrestricted full flow in one direction and adjustable flow in the reverse.

Product Features

  • 1/4" NPT body ports
  • Constructed of SAE 316L marine grade stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
  • Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
  • Low-temperature Buna o-ring seals for low-temperature applications down to -40°F

100% Leak Tested • 10-Year Warranty

Specifications
Lead Time (Working Days):20 20
ActuationAdjustable stem w/lock nut
FunctionAdjustable Needle
Media(S)Air/Inert Gas, Hydraulic, Natural Gas
Temp Range (F)-55°F to 200°F
Temp Range (C)-48°C to 93°C
Flow2.0 Cv
Flow DescriptionMetered Flow 0 to 2.0 Cv
Port Size/Type1/4" NPT body ports
Pressure Range (PSI)0-400 psi
Pressure Range (BAR)0-27.6 bar
Body & Internal Parts316L Stainless Steel
Seal MtlLow Temperature Buna
SeriesAC - Flow control
Weight0.55 lb
Weight (Kg)0.25 kg
