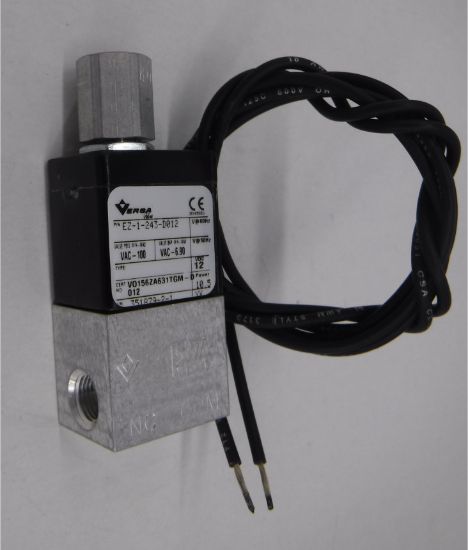

Versa - EZ-1-243-D012 VALVE, MULTI-PURPOSE, ALUM, 12VDC E - EZ

Versa - EZ-1-243-D012 VALVE, MULTI-PURPOSE, ALUM, 12VDC E - EZ

Series EZ valves are direct solenoid actuated valves and, physically, are the smallest of the Series E type valves. Ports
are 1/8” NPT in the valve body and are individually mounted. See below for technical data.
Series EZ Bantam Multiple Manifold valves are direct solenoid actuated and have 2 to 10 valve cavities within a single
body. Each valve within the manifold must be the same and perform the same function. See page 12 for part number
example.
Functional Types Available Ports Provided
2-way, NC or NO...........................Common inlet, individual outlets
3-way, NC..................................... Common inlet, individual outlets, exhaust to atmosphere. Common exhaust is available.
3-way, NO......................................Common inlet & exhaust, individual outlets
Multipurpose..................................Individual “NC,” “COM,” & “NO” ports

Function 2-Way NC, 2-way NO, 3-way NC, 3-Way NO, Directional
& Multi-Purpose
Media Air
Pressure: Vacuum - 500
Flow: to 0.21 Cv
Temperature: 0°F (-18°C) to 180°F (82°C)
Ports, Inlet & Outlet: ⅛” NPT
Exhaust/vent: Vent to atmosphere, #10-32 thread
(NPT port or dust protectors available)
Voltages: AC or DC (see selector table)
Coil rating: Class F, continuous duty
Power: 8.5 - 10 .5 Watts
Connections: DIN standard (-HC), Flying Leads (-243)or 1/2” NPT
conduit Hub (-228L) optional
Ingress protection: IP65 (-HC), NEMA 1 - 3 (-243), NEMA 4 (-228L)
Materials of construction:
Seals: FKM (fluorocarbon)
Body: Aluminum
Manifold: Aluminum
Coil: Epoxy molded, Class F, continuous duty
Mounting: (2) threaded holes
