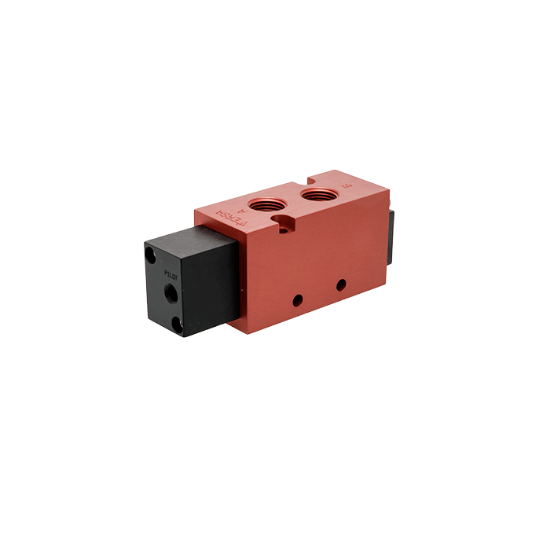

Versa - CSP-4502 VALVE, 4-WAY, ALUM C - C9

Versa - CSP-4502 VALVE, 4-WAY, ALUM C - C9
Manufacturer: Versa
SKU: VS-CSP-4502
Manufacturer part number: CSP-4502
$132.00 Call to Order

VERSA C9-SERIES DIRECTIONAL CONTROL VALVE

Versa aluminum C-Series valves are multi-purpose pilot operated pneumatic valves consisting of two body types, side ported and manifold mounted. A balanced, packed spool is the flow controlling element of each valve. The use of elastomer sealing provides bubble tight operation and efficient operation due to no waste of leaking air.

Product Features

  • 1/2" NPT body ports
  • Constructed of hard yet lightweight, corrosion-resistant anodized aluminum
  • Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
  • FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®

100% Leak Tested • 10-Year Warranty

Specifications
Lead Time (Working Days):2 2
ActuationPilot | Spring Return
Function4-way, 2-pos
Media(S)Air/Inert Gas, Natural Gas
Temp Range (F)-4°F to 203°F
Temp Range (C)-20°C to 95°C
Flow4.1 Cv
Port Size/Type1/2" NPT body ports
Pressure Range (PSI)VAC-150 psi
Pressure Range (BAR)VAC-10.3 bar
Pilot Port Size1/8" NPT
Pilot TypeRemote Pilot
Pilot Range (PSI)25-150 psi
Pilot Range (BAR)1.72-10.3 bar
Body & Internal PartsAluminum
Seal MtlFKM
SeriesC Series - C9
Weight1.51 lb
Weight (Kg)0.68 kg
