Versa - CSG-4222-027-D006 DIRECTIONAL CONTROL VALVE, 4-WAY, ALUM, 6VDC C - C5

Versa - CSG-4222-027-D006 VALVE, 4-WAY, ALUM, 6VDC C - C5
Manufacturer: Versa
SKU: VS-CSG-4222-027-D006
Manufacturer part number: CSG-4222-027-D006

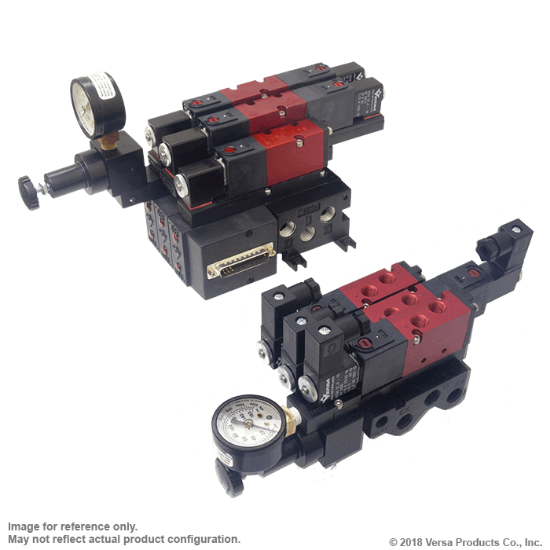

VERSA C5-SERIES DIRECTIONAL CONTROL VALVE

Versa aluminum C-Series valves are multi-purpose pilot operated pneumatic valves consisting of two body types, side ported and manifold mounted. A balanced, packed spool is the flow controlling element of each valve. The use of elastomer sealing provides bubble tight operation and efficient operation due to no waste of leaking air.

Product Features

  • 1/8" NPT body ports
  • Constructed of hard yet lightweight, corrosion-resistant anodized aluminum
  • Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
  • FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®

Solenoid Features

  • Solenoid coil connection: micro-mini molded 3 spade coil (EN 175301-803 Form C)
  • 100% Leak Tested • 10-Year Warranty
Specifications
Lead Time (Working Days):20 20
ActuationSolenoid-Pilot | Spring Return
Function4-way, 2-pos
Media(S)Air/Inert Gas, Natural Gas
Temp Range (F)14°F to 122°F
Temp Range (C)-10°C to 50°C
Flow0.75 Cv
Port Size/Type1/8" NPT body ports
Pressure Range (PSI)15-115 psi
Pressure Range (BAR)1.03-7.93 bar
Pilot TypeInternal Pilot
Body & Internal PartsAluminum
Seal MtlFKM
SeriesC Series - C5
Weight (Kg)0.16 kg

Solenoid Specifications
Solenoid CategoryGP - EN Class
Voltage6 V DC ±10% (D006)
Inrush128 mA
Holding128 mA
Resistance47 Ω
Coil ClassClass F
Solenoid Housing MaterialEngineered Polymer
Solenoid Seal MaterialFKM
Solenoid ConnectionMolded 3 spade coil, micro-mini (Form C)
