Versa - CPS-4312-316-NE1-44 VALVE, 4-WAY, SST CS - Namur stainless

Versa - CPS-4312-316-NE1-44 VALVE, 4-WAY, SST CS - Namur stainless
Manufacturer: Versa
SKU: VS-CPS-4312-316-NE1-44
Manufacturer part number: CPS-4312-316-NE1-44
$282.50 Call to Order

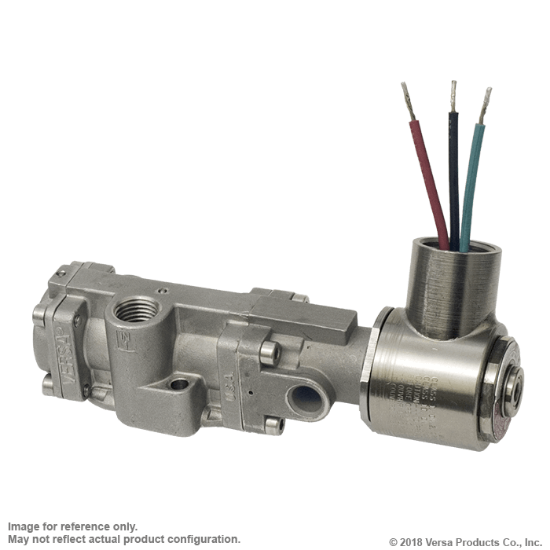

The Versa stainless steel NAMUR mount control valves are high flow, bubbletight, direct acting or solenoid/pilot operated. They are designed to mount directly to any NAMUR actuator, thus reducing actuator response time and cost of tubing, fittings, brackets, and labor.

Product Features

  • NAMUR 1/4" NPT ports
  • Constructed of SAE 316L marine grade stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
  • Valve body directly mountable to any NAMUR footprint reducing actuator response time and eliminating need for fittings, tubing or brackets
  • Low-temperature Buna o-ring seals for low-temperature applications down to -40°F

100% Leak Tested • 10-Year Warranty



Specifications
Lead Time (Working Days):20 20
ActuationPilot | Spring Return
Function4-way, 2-pos
Media(S)Air/Inert Gas, Hydraulic, Natural Gas
Temp Range (F)-55°F to 200°F
Temp Range (C)-48°C to 93°C
Flow1.6 Cv
Port Size/TypeNAMUR 1/4" NPT ports
Pressure Range (PSI)0-150 psi
Pressure Range (BAR)0-10.3 bar
Pilot Port Size1/8" NPT
Pilot TypeRemote Pilot
Body & Internal Parts316L Stainless Steel
Seal MtlLow Temperature Buna
SeriesC-316 NAMUR Stainless
Weight1.09 lb
Weight (Kg)0.5 kg

Options Included
44 Low temperature Buna
