Versa - CPS-4212-NB3 VALVE, 4-WAY, ALUM C - C5 Namur Aluminum

Versa - CPS-4212-NB3 VALVE, 4-WAY, ALUM C - C5 Namur Aluminum
Manufacturer: Versa
SKU: VS-CPS-4212-NB3
Manufacturer part number: CPS-4212-NB3

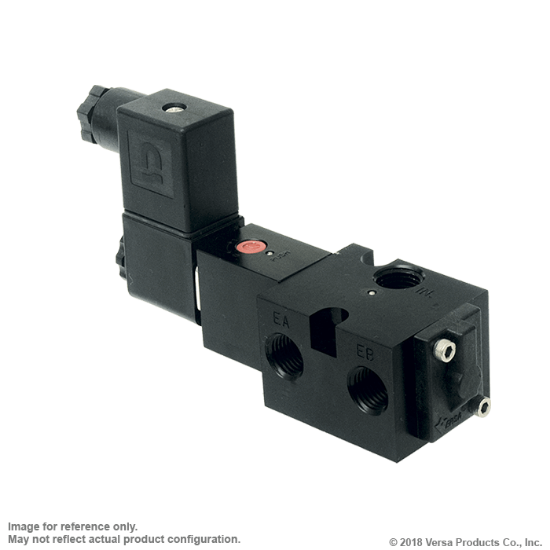

VERSA C NAMUR-SERIES DIRECTIONAL CONTROL VALVE

The Versa aluminum NAMUR mount control valves are high flow, bubbletight, direct acting or solenoid/pilot operated. They are designed to mount directly to any NAMUR actuator, thus reducing actuator response time and cost of tubing, fittings, brackets, and labor.

Product Features

  • NAMUR 1/4" NPT ports
  • Constructed of hard yet lightweight, corrosion-resistant anodized aluminum
  • Valve body directly mountable to any NAMUR footprint reducing actuator response time and eliminating need for fittings, tubing or brackets
  • FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®

100% Leak Tested • 10-Year Warranty

Specifications
Lead Time (Working Days):20 20
ActuationPilot | Spring Return
Function4-way, 2-pos
Media(S)Air/Inert Gas, Natural Gas
Temp Range (F)-4°F to 203°F
Temp Range (C)-20°C to 95°C
Flow0.75 Cv
Port Size/TypeNAMUR 1/4" NPT ports
Pressure Range (PSI)VAC-115 psi
Pressure Range (BAR)VAC-7.93 bar
Pilot Port Size1/8" NPT
Pilot TypeRemote Pilot
Pilot Range (PSI)15-115 psi
Pilot Range (BAR)1.03-7.93 bar
Body & Internal PartsAluminum
Seal MtlFKM
SeriesC5 NAMUR Aluminum
Weight0.48 lb
Weight (Kg)0.22 kg
