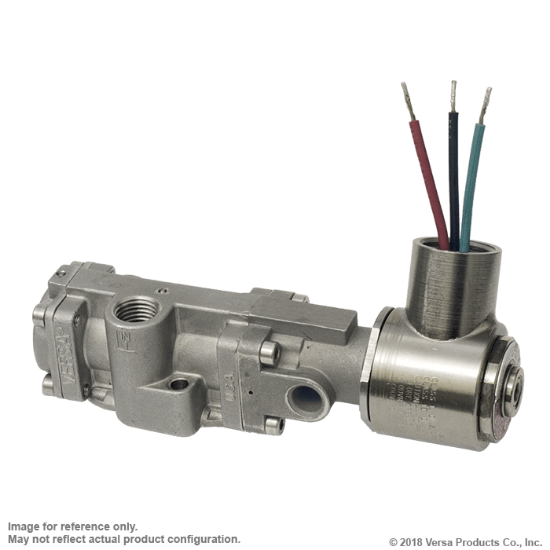

Versa - CPP-3311-316-NE2 VALVE, 3-WAY, SST CS - Namur stainless

Versa - CPP-3311-316-NE2 VALVE, 3-WAY, SST CS - Namur stainless
Manufacturer: Versa
SKU: VS-CPP-3311-316-NE2
Manufacturer part number: CPP-3311-316-NE2
$347.10 Call to Order

The Versa stainless steel NAMUR mount control valves are high flow, bubbletight, direct acting or solenoid/pilot operated. They are designed to mount directly to any NAMUR actuator, thus reducing actuator response time and cost of tubing, fittings, brackets, and labor.

Product Features

  • NAMUR 1/4" NPT ports
  • Constructed of SAE 316L marine grade stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
  • Valve body directly mountable to any NAMUR footprint reducing actuator response time and eliminating need for fittings, tubing or brackets
  • FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®

100% Leak Tested • 10-Year Warranty

Specifications
Lead Time (Working Days):20 20
ActuationDouble Pilot
Function3-way, 2-pos, NC
Media(S)Air/Inert Gas, Hydraulic, Natural Gas
Temp Range (F)-4°F to 300°F
Temp Range (C)-20°C to 149°C
Flow1.6 Cv
Port Size/TypeNAMUR 1/4" NPT ports
Pressure Range (PSI)VAC-115 psi
Pressure Range (BAR)VAC-7.93 bar
Pilot Port Size1/8" NPT
Pilot TypeRemote Pilot
Pilot Range (PSI)15-115 psi
Pilot Range (BAR)1.03-7.93 bar
Body & Internal Parts316L Stainless Steel
Seal MtlFKM
SeriesC-316 NAMUR Stainless
Weight1.46 lb
Weight (Kg)0.66 kg
