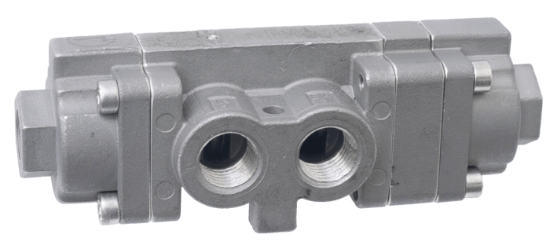

Versa - CPP-3301-316 VALVE, 3-WAY, SST CS - C316 series

Versa - CPP-3301-316 VALVE, 3-WAY, SST CS - C316 series
Manufacturer: Versa
SKU: VS-CPP-3301-316
Manufacturer part number: CPP-3301-316
$303.20 Call to Order

VERSA C-316-SERIES DIRECTIONAL CONTROL VALVE

The C-316 Series is available as either a 4-way, for double acting devices or a 3-way, for spring return devices. All solenoid actuators are solenoid/pilot type, which allows the use of the smallest solenoids available resulting in low power consumption. This design also assures a positive shifting force which makes certain the valve shifts when energized and reduces the chance of coil burnout.

Product Features

  • 1/4" NPT body ports
  • Constructed of SAE 316L marine grade stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
  • Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
  • FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®

100% Leak Tested • 10-Year Warranty

Specifications
Lead Time (Working Days):20 20
ActuationDouble Pilot
Function3-way, 2-pos, NC
Media(S)Air/Inert Gas, Hydraulic, Natural Gas
Temp Range (F)-4°F to 300°F
Temp Range (C)-20°C to 149°C
Flow2.0 Cv
Port Size/Type1/4" NPT body ports
Pressure Range (PSI)VAC-150 psi
Pressure Range (BAR)VAC-10.3 bar
Pilot Port Size1/8" NPT
Pilot Port Size 21/8" NPT
Pilot TypeRemote Pilot
Pilot Range (PSI)15-150 psi
Pilot Range (BAR)1.03-10.3 bar
Body & Internal Parts316L Stainless Steel
Seal MtlFKM
SeriesC-316
Weight1.28 lb
Weight (Kg)0.58 kg
