Versa - CJJ-4214-NB1-S VALVE, 4-WAY, ALUM C - C5 Namur Aluminum

Manufacturer: Versa

SKU: VS-CJJ-4214-NB1-S

Manufacturer part number: CJJ-4214-NB1-S

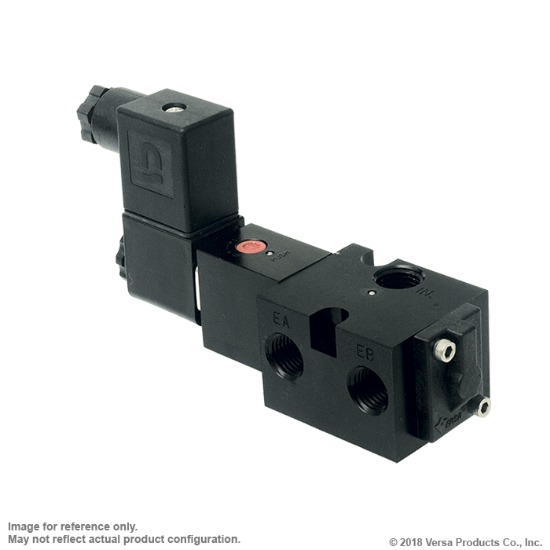

VERSA C NAMUR-SERIES DIRECTIONAL CONTROL VALVE

The Versa aluminum NAMUR mount control valves are high flow, bubbletight, direct acting or solenoid/pilot operated. They are designed to mount directly to any NAMUR actuator, thus reducing actuator response time and cost of tubing, fittings, brackets, and labor.

Product Features

NAMUR 1/4" NPT ports
Constructed of hard yet lightweight, corrosion-resistant anodized aluminum
Valve body directly mountable to any NAMUR footprint reducing actuator response time and eliminating need for fittings, tubing or brackets
FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®

100% Leak Tested • 10-Year Warranty

**Specifications**
Lead Time (Working Days):	20 20
Actuation	Double Pilot Spring Center
Function	4-way, 3-pos, Cylinder ports open to exhaust
Media(S)	Air/Inert Gas, Natural Gas
Temp Range (F)	-4°F to 203°F
Temp Range (C)	-20°C to 95°C
Flow	0.75 Cv
Port Size/Type	NAMUR 1/4" NPT ports
Pressure Range (PSI)	VAC-115 psi
Pressure Range (BAR)	VAC-7.93 bar
Pilot Port Size	1/8" NPT
Pilot Type	Remote Pilot
Pilot Range (PSI)	30-115 psi
Pilot Range (BAR)	2.07-7.93 bar
Body & Internal Parts	Aluminum
Seal Mtl	FKM
Series	C5 NAMUR Aluminum
Weight	0.81 lb
Weight (Kg)	0.37 kg

Options included	S Strong spring
