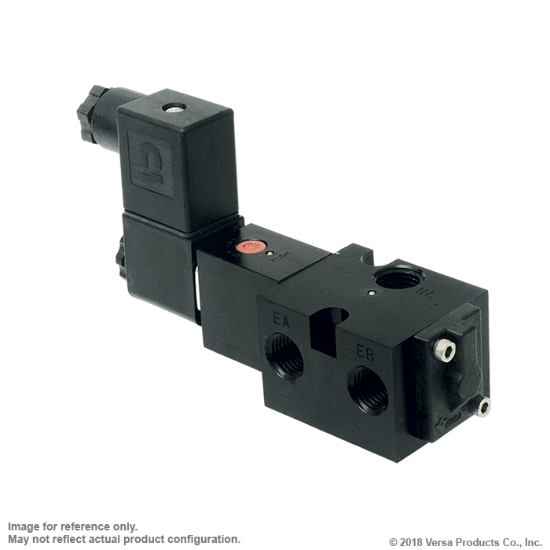

Picture of Versa - CJJ-4213-NB3 VALVE, 4-WAY, ALUM C - C5 Namur Aluminum

Versa - CJJ-4213-NB3 VALVE, 4-WAY, ALUM C - C5 Namur Aluminum

Versa - CJJ-4213-NB3 VALVE, 4-WAY, ALUM C - C5 Namur Aluminum
Manufacturer: Versa
SKU: VS-CJJ-4213-NB3
Manufacturer part number: CJJ-4213-NB3
$108.60 Call to Order
We Accept Many Forms of Payments including Visa, Mastercard, Discover and Amex

Shipping and delivery times can be severely affected by product availability from vendor. Call us or write us for accurate shipping times.

VERSA C NAMUR-SERIES DIRECTIONAL CONTROL VALVE

The Versa aluminum NAMUR mount control valves are high flow, bubbletight, direct acting or solenoid/pilot operated. They are designed to mount directly to any NAMUR actuator, thus reducing actuator response time and cost of tubing, fittings, brackets, and labor.

Product Features

  • NAMUR 1/4" NPT ports
  • Constructed of hard yet lightweight, corrosion-resistant anodized aluminum
  • Valve body directly mountable to any NAMUR footprint reducing actuator response time and eliminating need for fittings, tubing or brackets
  • FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®

100% Leak Tested • 10-Year Warranty

Specifications
Lead Time (Working Days):20 20
ActuationDouble Pilot Spring Center
Function4-way, 3-pos, Blocked Center
Media(S)Air/Inert Gas, Natural Gas
Temp Range (F)-4°F to 203°F
Temp Range (C)-20°C to 95°C
Flow0.75 Cv
Port Size/TypeNAMUR 1/4" NPT ports
Pressure Range (PSI)VAC-115 psi
Pressure Range (BAR)VAC-7.93 bar
Pilot Port Size1/8" NPT
Pilot TypeRemote Pilot
Pilot Range (PSI)15-115 psi
Pilot Range (BAR)1.03-7.93 bar
Body & Internal PartsAluminum
Seal MtlFKM
SeriesC5 NAMUR Aluminum
Weight0.81 lb
Weight (Kg)0.37 kg
