CGG-4232-NB1-XX-A120
CGG-4232-NB1-XX-A120

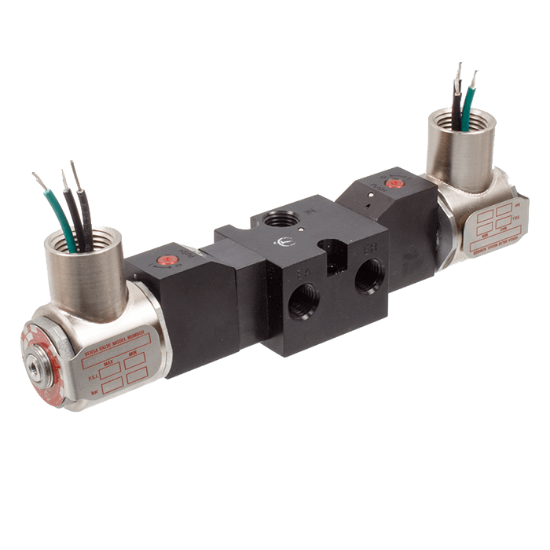

Picture of Versa - CGG-4232-NB1-XX-A120 DIRECTIONAL CONTROL VALVE, 4-WAY, ALUM, 120V60HZ C - C5 Namur Aluminum

Versa - CGG-4232-NB1-XX-A120 DIRECTIONAL CONTROL VALVE, 4-WAY, ALUM, 120V60HZ C - C5 Namur Aluminum

Versa - CGG-4232-NB1-XX-A120
Manufacturer: Versa
SKU: VS-CGG-4232-NB1-XX-A120
Manufacturer part number: CGG-4232-NB1-XX-A120
$247.10 Call to Order
We Accept Many Forms of Payments including Visa, Mastercard, Discover and Amex

Shipping and delivery times can be severely affected by product availability from vendor. Call us or write us for accurate shipping times.

Versa - CGG-4232-NB1-XX-A120 DIRECTIONAL CONTROL VALVE, 4-WAY, ALUM, 120V60HZ C - C5 Namur Aluminum

VERSA C NAMUR-SERIES DIRECTIONAL CONTROL VALVE

The Versa aluminum NAMUR mount control valves are high flow, bubbletight, direct acting or solenoid/pilot operated. They are designed to mount directly to any NAMUR actuator, thus reducing actuator response time and cost of tubing, fittings, brackets, and labor.

Product Features

  • NAMUR 1/4" NPT ports
  • Constructed of hard yet lightweight, corrosion-resistant anodized aluminum
  • Valve body directly mountable to any NAMUR footprint reducing actuator response time and eliminating need for fittings, tubing or brackets
  • FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®

Solenoid Features

  • Solenoid coil connection: 1/2" NPT female conduit with 24" wires

100% Leak Tested • 10-Year Warranty

Specifications
Lead Time (Working Days):2 2
ActuationDouble Solenoid-Pilot
Function4-way, 2-pos
Media(S)Air/Inert Gas, Natural Gas
Temp Range (Dust) F:-4°F to 104°F
Temp Range (Dust) C:-20°C to 40°C
Temp Range (Gas) F:-4°F to 104°F
Temp Range (Gas) C:-20°C to 40°C
Flow0.75 Cv
Port Size/TypeNAMUR 1/4" NPT ports
Pressure Range (PSI)10-115 psi
Pressure Range (BAR)0.70-7.93 bar
Pilot TypeInternal Pilot
Body & Internal PartsAluminum
Seal MtlFKM
SeriesC5 NAMUR Aluminum
Weight2.07 lb
Weight (Kg)0.94 kg



Solenoid Specifications
Solenoid CategoryHazloc- E5 Class
Voltage120 V 60 Hz ±10% (A120)
Inrush127 mA
Holding75 mA
Resistance475 Ω
Ingress ProtectionNEMA 1,2,3
Coil ClassClass F
ProtectionCl I, Grps C,D - Cl II, Grps E,F,G - Cl I, Div 2, Grps A,B,C,D - Cl II, Div 2, Grps E,F,G
T Rating (Gas)3C
T Rating (Dust)3C
CertificationcULus
Solenoid Housing MaterialSteel - Plated
Solenoid Seal MaterialFKM
Solenoid Connection1/2" NPT female conduit with 24" wires



Options
Options Included
A120 Voltage code 120 volt 60Hz
XX Hazardous Location Solenoid
