Versa - CGG-4222-243-A120 DIRECTIONAL CONTROL VALVE, 4-WAY, ALUM, 120V60HZ C - C5

Versa - CGG-4222-243-A120 DIRECTIONAL CONTROL VALVE, 4-WAY, ALUM, 120V60HZ C - C5

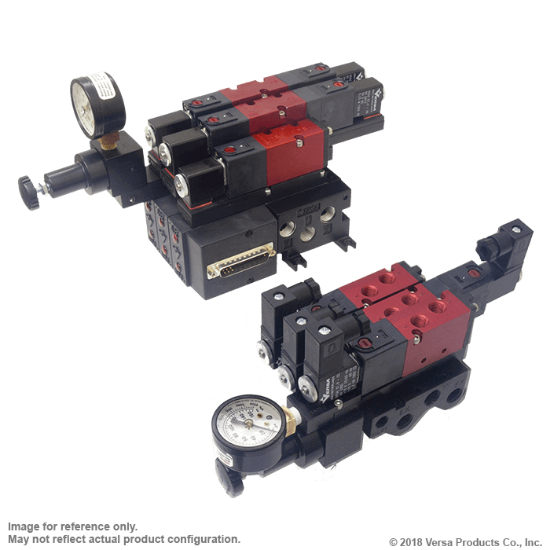

VERSA C5-SERIES DIRECTIONAL CONTROL VALVE

Versa aluminum C-Series valves are multi-purpose pilot operated pneumatic valves consisting of two body types, side ported and manifold mounted. A balanced, packed spool is the flow controlling element of each valve. The use of elastomer sealing provides bubble tight operation and efficient operation due to no waste of leaking air.

Product Features

• 1/8" NPT body ports
• Constructed of hard yet lightweight, corrosion-resistant anodized aluminum
• Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
• FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®

Solenoid Features

• Solenoid coil connection: Molded coil with 24" wires

100% Leak Tested • 10-Year Warranty
