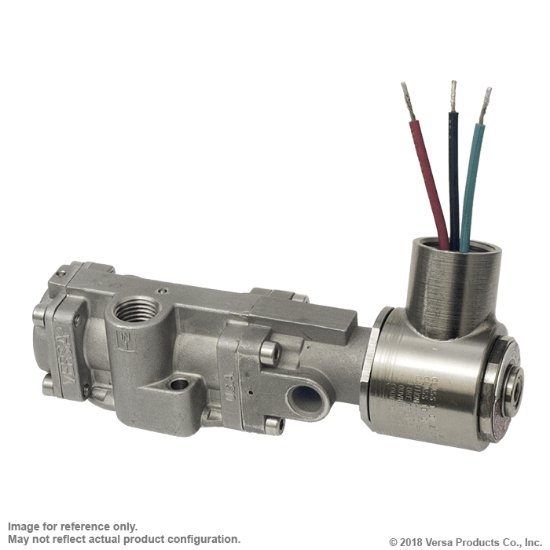

Versa - CGG-3331-316-NE1-XIFA-D024 VALVE, 3-WAY, SST, 24VDC CS - Namur stainless

Versa - CGG-3331-316-NE1-XIFA-D024 VALVE, 3-WAY, SST, 24VDC CS - Namur stainless

The Versa stainless steel NAMUR mount control valves are high flow, bubbletight, direct acting or solenoid/pilot operated. They are designed to mount directly to any NAMUR actuator, thus reducing actuator response time and cost of tubing, fittings, brackets, and labor.

Product Features

• NAMUR 1/4" NPT ports
• Constructed of SAE 316L marine grade stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
• Valve body directly mountable to any NAMUR footprint reducing actuator response time and eliminating need for fittings, tubing or brackets
• FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®

Solenoid Features

• Solenoid coil connection: M20 female conduit with integral junction box

100% Leak Tested • 10-Year Warranty
