CGG-3232-NB3-XX-D024
CGG-3232-NB3-XX-D024

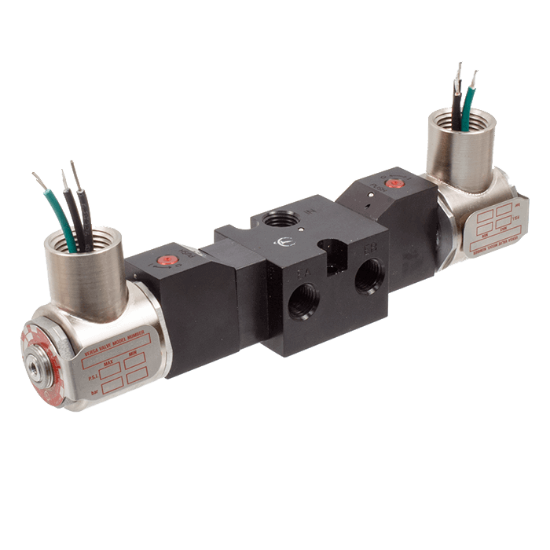

Picture of Versa - CGG-3232-NB3-XX-D024 DIRECTIONAL CONTROL VALVE, 3-WAY, ALUM, 24VDC C - C5 Namur Aluminum

Versa - CGG-3232-NB3-XX-D024 DIRECTIONAL CONTROL VALVE, 3-WAY, ALUM, 24VDC C - C5 Namur Aluminum

Versa - CGG-3232-NB3-XX-D024
Manufacturer: Versa
SKU: VS-CGG-3232-NB3-XX-D024
Manufacturer part number: CGG-3232-NB3-XX-D024
$247.10 Call to Order
We Accept Many Forms of Payments including Visa, Mastercard, Discover and Amex

Shipping and delivery times can be severely affected by product availability from vendor. Call us or write us for accurate shipping times.

Versa - CGG-3232-NB3-XX-D024 DIRECTIONAL CONTROL VALVE, 3-WAY, ALUM, 24VDC C - C5 Namur Aluminum

VERSA C NAMUR-SERIES DIRECTIONAL CONTROL VALVE

The Versa aluminum NAMUR mount control valves are high flow, bubbletight, direct acting or solenoid/pilot operated. They are designed to mount directly to any NAMUR actuator, thus reducing actuator response time and cost of tubing, fittings, brackets, and labor.

Product Features

  • NAMUR 1/4" NPT ports
  • Constructed of hard yet lightweight, corrosion-resistant anodized aluminum
  • Valve body directly mountable to any NAMUR footprint reducing actuator response time and eliminating need for fittings, tubing or brackets
  • FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®

Solenoid Features

  • Solenoid coil connection: 1/2" NPT female conduit with 24" wires

100% Leak Tested • 10-Year Warranty

Specifications
Lead Time (Working Days):2 2
ActuationDouble Solenoid-Pilot
Function3-way, 2-pos, NO
Media(S)Air/Inert Gas, Natural Gas
Temp Range (Dust) F:-4°F to 104°F
Temp Range (Dust) C:-20°C to 40°C
Temp Range (Gas) F:-4°F to 104°F
Temp Range (Gas) C:-20°C to 40°C
Flow0.75 Cv
Port Size/TypeNAMUR 1/4" NPT ports
Pressure Range (PSI)10-115 psi
Pressure Range (BAR)0.70-7.93 bar
Pilot TypeInternal Pilot
Body & Internal PartsAluminum
Seal MtlFKM
SeriesC5 NAMUR Aluminum
Weight (Kg)0.94 kg



Solenoid Specifications
Voltage24 V DC ±10% (D024)
Inrush320 mA
Holding320 mA
Resistance75 Ω
Ingress ProtectionNEMA 1,2,3
Coil ClassClass F
ProtectionCl I, Grps C,D - Cl II, Grps E,F,G - Cl I, Div 2, Grps A,B,C,D - Cl II, Div 2, Grps E,F,G
T Rating (Gas)3C
T Rating (Dust)3C
CertificationcULus
Solenoid Housing MaterialSteel - Plated
Solenoid Seal MaterialFKM
Solenoid Connection1/2" NPT female conduit with 24" wires



Options
Options Included
D024 Voltage code 24 volt DC
XX Hazardous Location Solenoid
