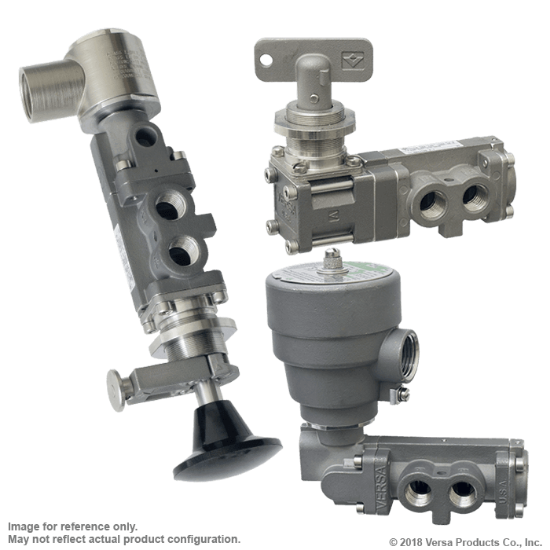

Versa - CAG-3321-316-356B-XXL4-44-D024 SERIES DIRECTIONAL VALVE, 3-WAY, SST, 24VDC CS - C316 series

SERIES DIRECTIONAL VALVE, 3-WAY, SST, 24VDC CS - C316 series

VERSA C-316-SERIES DIRECTIONAL CONTROL VALVE

The C-316 Series is available as either a 4-way, for double acting devices or a 3-way, for spring return devices. All solenoid actuators are solenoid/pilot type, which allows the use of the smallest solenoids available resulting in low power consumption. This design also assures a positive shifting force which makes certain the valve shifts when energized and reduces the chance of coil burnout.

Product Features

• 1/4" NPT body ports
• Constructed of SAE 316L marine grade stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
• Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
• Low-temperature Buna o-ring seals for low-temperature applications down to -40°F

Solenoid Features

• Solenoid coil connection: 1/2" NPT female conduit with 24" wires

100% Leak Tested • 10-Year Warranty
