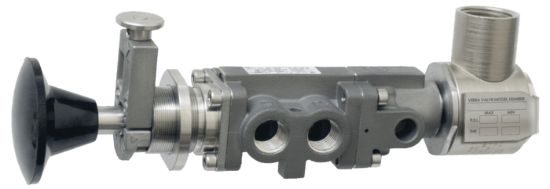

Versa - CAG-3321-316-356B-XX-A120 DIRECTIONAL CONTROL VALVE, 3-WAY, SST, 120V60HZ CS - C316 series

Versa - CAG-3321-316-356B-XX-A120

Manufacturer: Versa

SKU: VS-CAG-3321-316-356B-XX-A120

Manufacturer part number: CAG-3321-316-356B-XX-A120

$544.00 Call to Order

VERSA C-316-SERIES DIRECTIONAL CONTROL VALVE

The C-316 Series is available as either a 4-way, for double acting devices or a 3-way, for spring return devices. All solenoid actuators are solenoid/pilot type, which allows the use of the smallest solenoids available resulting in low power consumption. This design also assures a positive shifting force which makes certain the valve shifts when energized and reduces the chance of coil burnout.

Product Features

1/4" NPT body ports
Constructed of SAE 316L marine grade stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®

Solenoid Features

Solenoid coil connection: 1/2" NPT female conduit with 24" wires

100% Leak Tested • 10-Year Warranty

**Specifications**
Lead Time (Working Days):	10 10
Actuation	Solenoid-Pilot \| Latch-Reset With Button (Shift Away From Button Latches)
Function	3-way, 2-pos, NC
Media(S)	Air/Inert Gas, Hydraulic, Natural Gas
Temp Range (Dust) F:	-4°F to 104°F
Temp Range (Dust) C:	-20°C to 40°C
Temp Range (Gas) F:	-4°F to 104°F
Temp Range (Gas) C:	-20°C to 40°C
Flow	2.0 Cv
Port Size/Type	1/4" NPT body ports
Pressure Range (PSI)	25-150 psi
Pressure Range (BAR)	1.72-10.3 bar
Pilot Type	Internal Pilot
Body & Internal Parts	316L Stainless Steel
Seal Mtl	FKM
Series	C-316
Weight (Kg)	0.94 kg


Solenoid Specifications
Solenoid Category	Hazloc- E5 Class
Voltage	120 V 60 Hz ±10% (A120)
Inrush	127 mA
Holding	75 mA
Resistance	475 Ω
Ingress Protection	NEMA 1,2,3
Coil Class	Class F
Protection	Cl I, Grps C,D - Cl II, Grps E,F,G - Cl I, Div 2, Grps A,B,C,D - Cl II, Div 2, Grps E,F,G
T Rating (Gas)	3C
T Rating (Dust)	3C
Certification	cULus
Solenoid Housing Material	Steel - Plated
Solenoid Seal Material	FKM
Solenoid Connection	1/2" NPT female conduit with 24" wires

Options Included

A120		Voltage code 120 volt 60Hz
XX		Hazardous Location Solenoid
