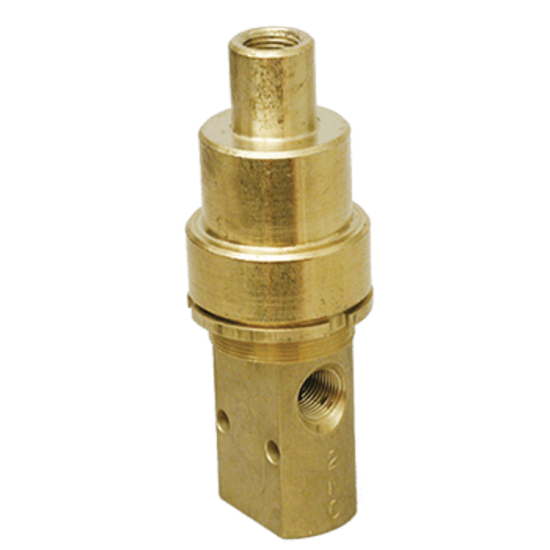

Versa - BPS-3208-167 VALVE, 3-WAY, NPB B series

Manufacturer: Versa

SKU: VS-BPS-3208-167

Manufacturer part number: BPS-3208-167

VERSA B-SERIES DIRECTIONAL CONTROL VALVE

The Versa B series line offers a collection of manually actuated valves that include buttons, levers and cams all with brass body construction. The B series of valves offer a perfect solution for any manual pneumatic application.

Product Features

1/8" NPT body ports
Constructed of forged brass with electroless nickel plating for increased wear resistance, hardness and corrosion protection. Long-lasting performance in the most demanding conditions
Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
Buna-N/nitrile rubber o-ring seals perform reliably with oil, fuel, and other chemicals over broad temperature range

100% Leak Tested • 10-Year Warranty

**Specifications**
Lead Time (Working Days):	10 10
Actuation	Pilot \| Spring Return
Function	3-way, 2-pos, NC
Media(S)	Air/Inert Gas
Temp Range (F)	-10°F to 200°F
Temp Range (C)	-23°C to 93°C
Flow	0.60 Cv
Port Size/Type	1/8" NPT body ports
Pressure Range (PSI)	VAC-200 psi
Pressure Range (BAR)	VAC-13.8 bar
Pilot Port Size	1/8" NPT
Pilot Type	Remote Pilot
Body & Internal Parts	Nickel Plated Brass
Seal Mtl	Buna
Series	B series
Weight (Kg)	0.22 kg

Options Included	167 Electroless nickel plating
