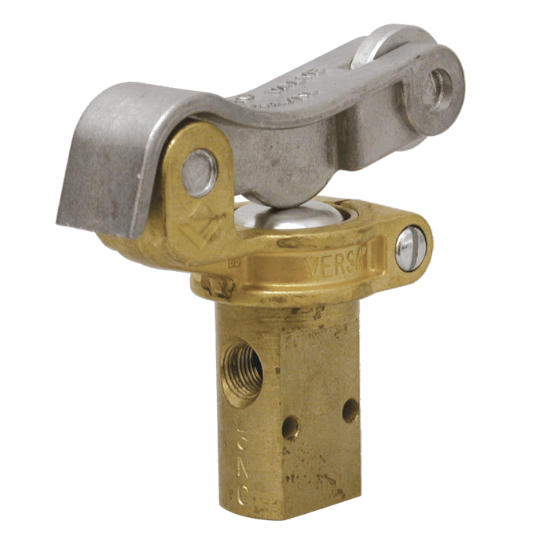

Versa - BCK-2206-167 DIRECTIONAL CONTROL VALVE, 2-WAY, NPB B series

Versa - BCK-2206-167 VALVE, 2-WAY, NPB B series
Manufacturer: Versa
SKU: VS-BCK-2206-167
Manufacturer part number: BCK-2206-167

VERSA B-SERIES DIRECTIONAL CONTROL VALVE

The Versa B series line offers a collection of manually actuated valves that include buttons, levers and cams all with brass body construction. The B series of valves offer a perfect solution for any manual pneumatic application.

Product Features

  • 1/8" NPT body ports
  • Constructed of forged brass with electroless nickel plating for increased wear resistance, hardness and corrosion protection. Long-lasting performance in the most demanding conditions
  • Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
  • Buna-N/nitrile rubber o-ring seals perform reliably with oil, fuel, and other chemicals over broad temperature range

100% Leak Tested • 10-Year Warranty



Specifications
Lead Time (Working Days):10 10
ActuationCam | Spring Return
Function2-way, 2-pos, NO
Media(S)Air/Inert Gas, Hydraulic, Natural Gas, Water
Temp Range (F)-10°F to 200°F
Temp Range (C)-23°C to 93°C
Flow0.50 Cv
Port Size/Type1/8" NPT body ports
Pressure Range (PSI)VAC-200 psi
Pressure Range (BAR)VAC-13.8 bar
Body & Internal PartsNickel Plated Brass
Seal MtlBuna
SeriesB series
Weight0.59 lb
Weight (Kg)0.27 kg


Options Included
167 Electroless nickel plating
