BC-5

Versa BC-5 Bleed Control Valve, Exhaust Flow Control Left End Actuator 1/2" NPT

Be the first to review this product
Manufacturer: Versa
Availability: 25 in stock
SKU: VS-BC-5
Manufacturer part number: BC-5
$25.80 Call to Order
We Accept Many Forms of Payments including Visa, Mastercard, Discover and Amex

Shipping and delivery times can be severely affected by product availability from vendor. Call us or write us for accurate shipping times.

Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

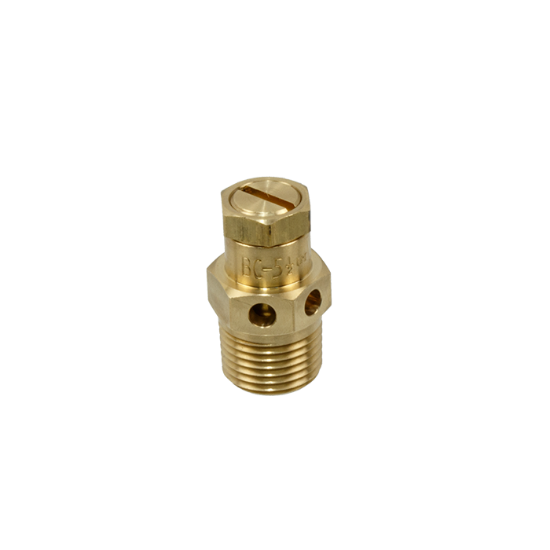

Brass Bleed Control Valve

The Versa brass bleed control valve includes a precision machined needle for flow adjustment. The flow is adjusted easily by turning the needle. After the Bleed Control Valve is adjusted, it can be securely locked at the desired flow setting with the lock nut provided.

Product Features

  • 1/2" NPT body ports
  • Constructed of forged brass with electroless nickel plating for increased wear resistance, hardness and corrosion protection. Long-lasting performance in the most demanding conditions
  • Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
  • 100% Leak Tested • 10-Year Warranty
ActuationAdjustable stem w/lock nut
Media(S)Air/Inert Gas
Temp Range (F)-61°F to 300°F
Temp Range (C)-52°C to 149°C
Flow3.6 Cv
Port Size/Type1/2" NPT body ports
Pressure Range (PSI)0-200 psi
Pressure Range (BAR)0-13.8 bar
Body & Internal PartsNickel Plated Brass
Seal MtlNone
SeriesAC - Bleed control
Weight0.19 lb
Weight (Kg)0.09 kg
