Versa BC-4 Bleed Control Valve, Exhaust Flow Control Left End Actuator 3/8" NPT

Manufacturer: Versa
Availability: 25 in stock
SKU: VS-BC-4
Manufacturer part number: BC-4
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

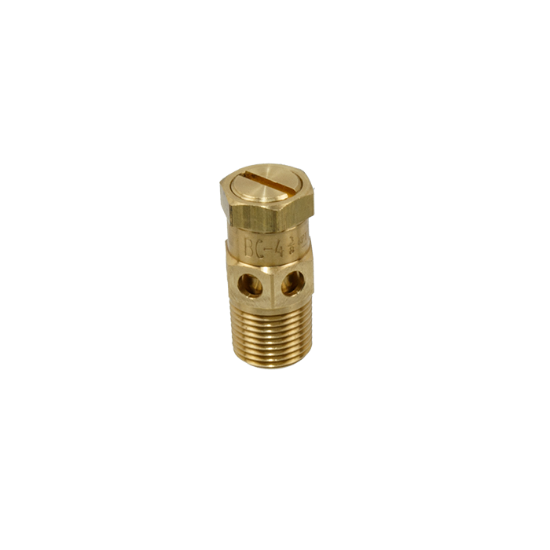

BC-4 Bleed Control Valve, Exhaust Flow Control Left End Actuator 3/8" NPT

Brass Bleed Control Valve

The Versa brass bleed control valve includes a precision machined needle for flow adjustment. The flow is adjusted easily by turning the needle. After the Bleed Control Valve is adjusted, it can be securely locked at the desired flow setting with the lock nut provided.

Product Features

  • 3/8" NPT body ports
  • Constructed of forged brass for long-lasting, corrosion-resistant strength. Functions without fail when exposed to mud, water, salt, grime, oils and chemicals
  • Connects directly to pressure lines with integral, pipe threaded ports on side of valve body
  • 100% Leak Tested • 10-Year Warranty
Specifications
Lead Time (Working Days):65 65
ActuationAdjustable stem w/lock nut
Media(S)Air/Inert Gas
Temp Range (F)-61°F to 300°F
Temp Range (C)-52°C to 149°C
Flow3.5 Cv
Port Size/Type3/8" NPT body ports
Pressure Range (PSI)0-200 psi
Pressure Range (BAR)0-13.8 bar
Body & Internal PartsBrass
Seal MtlNone
SeriesAC - Bleed control
Weight (Kg)0.06 kg
