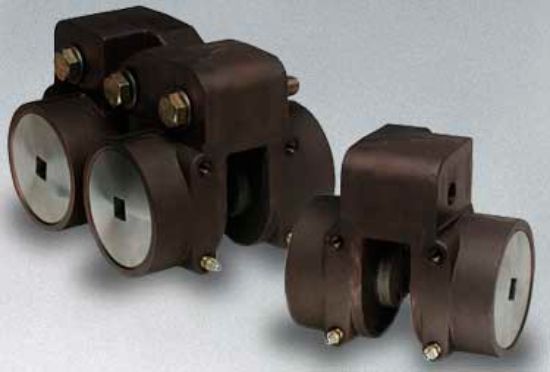

TOLOMATIC FS595-DCIKE dual double-acting spring applied caliper disc brakes 1/2" 0781-0011

TOLOMATIC Item # 0781-0011

Be the first to review this product

Manufacturer: Tolomatic

Availability: In stock

SKU: TL-FS595DCIKE-0781-0011

Manufacturer part number: FS595DCIKE

$1,522.00 Call to Order

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

The TOLOMATIC FS595 Series of double-acting spring applied brakes require hydraulic pressure for disc release. Braking force is provided by a stack (or stacks) of Belleville spring washers, capable of storing enormous force. When presurized the force moves the piston(s) to compress the spring washer stack(s), releasing the disc. The FS595 Series features replaceable, high-grade friction material, cast ductile iron construction and cadmium plated grade 8 bolts. Buna-N seals are standard. Maximum hydraulic pressure rating is 2000 PSI Non Shock. Minimum hydraulic pressure to release brake is 1400 PSI.

Specifications

Model		FS595-DCIKE, Item # 0781-0011

Type		4525 lb

Disc Thickness		1/2 Inch

Disc Diameter		14" to Unlimited

Effective Piston Area		9.14 in²

Max. Static Torque		16" Disc: 30,4088 in-lb
Added Options		Double Acting / Manual Wear Compensation / Viton ^(R) Seals
