RC-2430
RC-2430
RC-2430

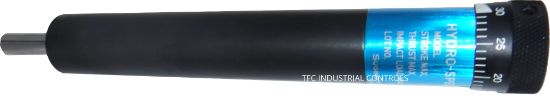

Sugino RC-2430, HYDRO SPEED REGULATORS (SPRING RETURN) direct replacement for RB2430

NOTE: The RC-2430 is a direct replacement for the RB-2430 with identical performance data, identical size and physical profile. The only difference between the RC2430 and the RB2430 is that the RC-2430 IS NOT rebuildable while the RB-2430 is. Please contact us if you have any questions about compatibility with your unit. Spring loaded regulators are used primarily for standard drilling operations and are designed to automatically return to their position at the end of every drilling cycle. With the RB spring return regulator, the piston rod is automatically returned to its original position by the built-in spring when the piston rod is no longer loaded.
Be the first to review this product
Manufacturer: Sugino
SKU: RC-2430
Manufacturer part number: RC-2430
$246.00 Call to Order
We Accept Many Forms of Payments including Visa, Mastercard, Discover and Amex

Shipping and delivery times can be severely affected by product availability from vendor. Call us or write us for accurate shipping times.

Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Specifications

Type of Rod Return

Spring return

Type

RC

Maximum Stroke

1.18 inches (30 mm)

Load Range

44 - 330 lbs (20 - 150 kg)

Permissible Impact Load

1.80 (ft. lbs.) (0.25 kg.m)

A

4.53 inches (115 mm)

B

1.10 inches (28 mm)

C

0.94 inches (24 mm)

D

0.35 inches (9 mm)

E

0.79 inches (20 mm)

F

1.26 inches (32 mm)

G

1.18 inches (30 mm)

H

7.87 inches (200 mm)

I

1.34 inches (34 mm)

J

1.73 inches (44 mm)

K

0.20 inches (5 mm)

L

0.59 inches (15 mm)

M

1.18 inches (30 mm)

N

M5 x 0.8

Speed Adjust Range

F=44 Lbs, 0.02 to 0.12 in./sec.F=310 Lbs, 0.03 to 1.00 in./sec.

Applicable Selfeeder Model

ES2ES3CES3PGSAGSBSFBSFC

Weight

.41 kg0.90 lbs

Detail Chart



ModelRange of Speed Control for each thrust in./sec.Range of Speed Control for each thrust mm/sec.
RB-2340F = 44 lbs. :0.01 - 0.20
F = 110 lbs. :0.01 - 1.00
F = 220 lbs. :0.02 - 1.57
F = 330 lbs. :0.02 - 2.00		F = 20kg :0.1 - 5
F = 50kg :0.2 - 25
F = 100kg :0.3 - 40
F = 150kg :0.4 - 50
RB-2460
RB-3140F = 110 lbs. :0.01 - 40
F = 330 lbs. :0.01 - 1.00
F = 480 lbs. :0.02 - 1.38
F = 660 lbs. :0.02 - 1.57		F = 50kg :0.1 - 10
F = 150kg :0.2 - 25
F = 220kg :0.3 - 35
F = 300kg :0.5 - 40
RB3160
RB3860F = 480 lbs. :0.01 - 0.59
F = 840 lbs. :0.01 - 0.98
F = 990 lbs. :0.02 - 1.18		F = 220kg :0.2 - 15
F = 380kg :0.3 - 25
F = 450kg :0.4 - 30



Features

  • The regulator is completely sealed to eliminate the need for resupplying the unit with operating oil and will provide stable speed control for many years of production.
  • Installation is easy. No need for piping or wiring


Note

      RB-2460 used with SFB pneumatic Selfeeder requires special screw supporter. R-2442A, R-2462A and R-2482A used with SFB and SFC pneumatic selfeeder requires special spacer and screw supporter
