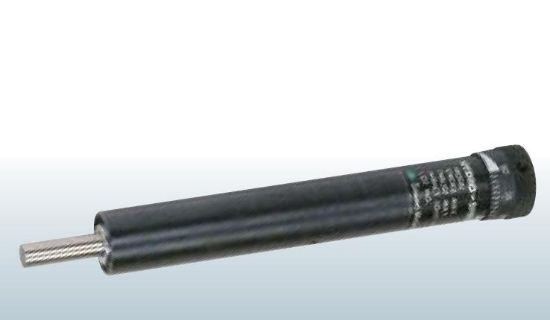

Sugino RB-3860, HYDRO SPEED REGULATOR (SPRING RETURN)

Be the first to review this product
Manufacturer: Sugino
SKU: RB3860
Manufacturer part number: RB-3860
$845.00 Call to Order
We Accept Many Forms of Payments including Visa, Mastercard, Discover and Amex

Shipping and delivery times can be severely affected by product availability from vendor. Call us or write us for accurate shipping times.

Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Spring loaded regulators are used primarily for standard drilling operations and are designed to automatically return to their position at the end of every drilling cycle.
With the RB spring return regulator, the piston rod is automatically returned to its original position by the built-in spring when the piston rod is no longer loaded.

Specifications

Type of Rod Return

Spring return

Type

RB

Maximum Stroke

2.36 inches (60 mm)

Load Range

480 - 990 lbs (220 - 450 kg)

Permissible Impact Load

4.30 (ft. lbs.) (0.6 kg.m)

A

6.50 inches (165 mm)

B

1.73 inches (44 mm)

C

1.50 inches (38 mm)

D

0.55 inches (14 mm)

E

1.34 inches (34 mm)

F

1.97 inches (50 mm)

G

2.36 inches (60 mm)

H

13.78 inches (350 mm)

I

1.65 inches (42 mm)

J

1.50 inches (38 mm)

K

3.70 inches (94 mm)

L

0.94 inches (24 mm)

M

1.93 inches (49 mm)

N

0.28 inches (7 mm)

Weight

1.80 kg3.96 lbs

Detail Chart



ModelRange of Speed Control for each thrust in./sec.Range of Speed Control for each thrust mm/sec.
RB-2340F = 44 lbs. :0.01 - 0.20
F = 110 lbs. :0.01 - 1.00
F = 220 lbs. :0.02 - 1.57
F = 330 lbs. :0.02 - 2.00		F = 20kg :0.1 - 5
F = 50kg :0.2 - 25
F = 100kg :0.3 - 40
F = 150kg :0.4 - 50
RB-2460
RB-3140F = 110 lbs. :0.01 - 40
F = 330 lbs. :0.01 - 1.00
F = 480 lbs. :0.02 - 1.38
F = 660 lbs. :0.02 - 1.57		F = 50kg :0.1 - 10
F = 150kg :0.2 - 25
F = 220kg :0.3 - 35
F = 300kg :0.5 - 40
RB3160
RB3860F = 480 lbs. :0.01 - 0.59
F = 840 lbs. :0.01 - 0.98
F = 990 lbs. :0.02 - 1.18		F = 220kg :0.2 - 15
F = 380kg :0.3 - 25
F = 450kg :0.4 - 30



Features



  • The regulator is completely sealed to eliminate the need for resupplying the unit with operating oil and will provide stable speed control for many years of production.
  • Installation is easy. No need for piping or wiring.
