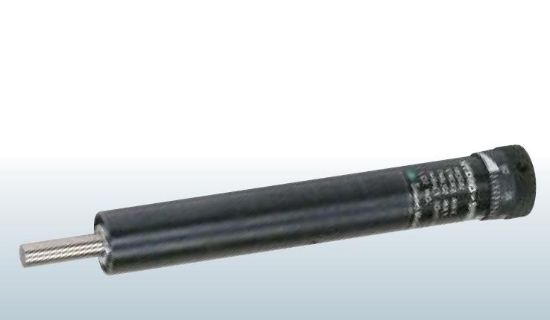

Sugino RB-2460, HYDRO SPEED REGULATORS (SPRING RETURN)

Spring loaded regulators are used primarily for standard drilling operations and are designed to automatically return to their position at the end of every drilling cycle. With the RB spring return regulator, the piston rod is automatically returned to its original position by the built-in spring when the piston rod is no longer loaded.

Be the first to review this product

Manufacturer: Sugino

SKU: RB-2460

Manufacturer part number: RB-2460

$495.00 Call to Order

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Specifications

Type of Rod Return	Spring return
Type	RB
Maximum Stroke	2.36 inches (60 mm)
Load Range	44 - 330 lbs (20 - 150 kg)
Permissible Impact Load	1.80 (ft. lbs.) (0.25 kg.m)
A	7.72 inches (196 mm)
B	1.10 inches (28 mm)
C	0.94 inches (24 mm)
D	0.35 inches (9 mm)
E	0.79 inches (20 mm)
F	1.26 inches (32 mm)
G	2.36 inches (60 mm)
H	12.24 inches (311 mm)
I	1.34 inches (34 mm)
J	1.73 inches (44 mm)
K	0.20 inches (5 mm)
L	0.59 inches (15 mm)
M	1.18 inches (30 mm)
N	M5 x 0.8
Applicable Selfeeder Model	ES2ES3CES3PGSAGSBSFBSFC
Weight	.58 kg1.28 lbs

Detail Chart

Model	Range of Speed Control for each thrust in./sec.	Range of Speed Control for each thrust mm/sec.
RB-2340	F = 44 lbs. :0.01 - 0.20 F = 110 lbs. :0.01 - 1.00 F = 220 lbs. :0.02 - 1.57 F = 330 lbs. :0.02 - 2.00	F = 20kg :0.1 - 5 F = 50kg :0.2 - 25 F = 100kg :0.3 - 40 F = 150kg :0.4 - 50
RB-2460
RB-3140	F = 110 lbs. :0.01 - 40 F = 330 lbs. :0.01 - 1.00 F = 480 lbs. :0.02 - 1.38 F = 660 lbs. :0.02 - 1.57	F = 50kg :0.1 - 10 F = 150kg :0.2 - 25 F = 220kg :0.3 - 35 F = 300kg :0.5 - 40
RB3160
RB3860	F = 480 lbs. :0.01 - 0.59 F = 840 lbs. :0.01 - 0.98 F = 990 lbs. :0.02 - 1.18	F = 220kg :0.2 - 15 F = 380kg :0.3 - 25 F = 450kg :0.4 - 30

Features

The regulator is completely sealed to eliminate the need for resupplying the unit with operating oil and will provide stable speed control for many years of production.
Installation is easy. No need for piping or wiring.
