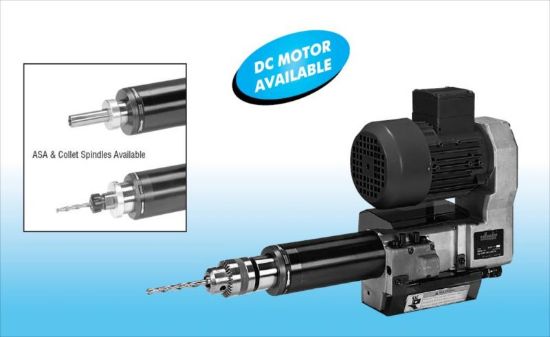

SUGINO ES3P-4-1322LU, self feeder

Delivery and prices may vary, call us to confirm lead time.

Manufacturer: Sugino

SKU: ES3P-4-1322LU

Manufacturer part number: ES3P-4-1322LU

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

1/2 or 3/4 HP spindle motors
900-9000 fixed rpm spindle speed range
Typical drilling capacity in mild steel is 11/32 in.(8.5 mm)
Typical drilling capacity in cast iron 25/64 in. (10 mm)
Typical drilling capacity in aluminum 1/2 in.(12.5 mm)
Standard stroke of 3.15 in. (80 mm) (L type) with 5.91 in. (150 mm) (LL type) optional
Standard JT33 and JT1 type spindles for drill or collet chucks with integral collet, ASA and KH quick change, and special spindles available as options

Type	Electric
Operating Air Pressure (psi)	85
Spindle RPM (no load)	2900
Drill Chuck Capacity	1/2 in13 mm
Aluminum Drill Size	19/64 in7.5 mm
Cast Iron Drill Size	9/64 in3.5 mm
Mild Steel Drill Size	9/64 in3.5 mm
Theoretical Spindle Torque	0.91 ft.lbs1.23 N·m
Unit Stroke	3.15 inches (80 mm) LU type5.91 inches (150 mm) LLU type
Stroke Hydro Speed Regulator	0 - 1.18 inches (0 - 30 mm)
Motor Output	1/2 HP
No. of Poles (P)	4
Thrust	119 kg264 lbs
Air Consumption (ft³/stroke)	0.105 - 0.210
Weight	46 lbs LU type53 lbs LLU type
A	3.15 inches (80 mm) LU type5.91 inches (150 mm) LLU type
B	21.61 inches (549 mm) LU type27.13 inches (689 mm) LLU type
C	4.25 inches (108 mm)
D	17.36 inches (441 mm) LU type22.87 inches (581 mm) LLU type
E	5.87 inches (149 mm) LU type8.62 inches (219 mm) LLU type
F	1.38 inches (35 mm)
G	1.97 inches (50 mm)
Optional Hydro Speed Regulator	RB-2430
Spindle Types	ER20
Drilling Mode Package	SM1SM2SM3
