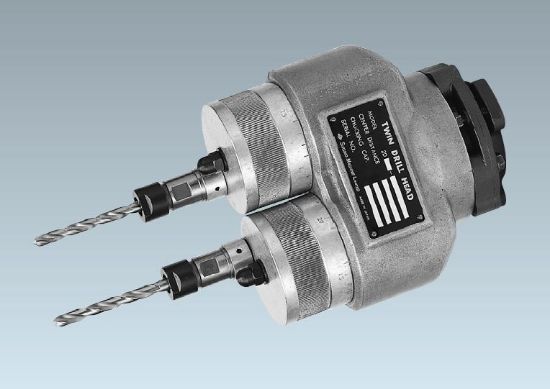

SUGINO 2D43-5100APV, COLLET CHUCK STYLE DRILL HEADS (ADJUSTABLE SPINDLE)

Delivery may vary, call us to confirm lead time.

Manufacturer: Sugino

SKU: SG-2D43-5100APV

Manufacturer part number: 2D43-5100APV

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Spindle Center Distance (min. ∼ max.)	0.91 ∼ 4.49 inches (23 ∼ 114 mm)
Chucking Capacity	3/64 ∼ 25/64 inches (1.1 ∼ 10 mm)
Chuck Type	Collet Chuck
D	5.87 inches (149 mm)
L	7.95 inches (202 mm)
L1	2.32 inches (59 mm)
L2	4.61 inches (117 mm)
L3	1.02 inches (26 mm)
A	0.87 inches (22 mm)
B	0.89 inches (22.5 mm)
C	1.30 inches (33 mm)
E	0.04 inches (1 mm)
H	1.36 inches (34.5 mm)
J	0.91 inches (23 mm)
K	2.70 inches (68.5 mm)
M	1.97 inches (50 mm)
N	1.73 inches (44 mm)
Q	1.93 inches (49 mm)
R	1.81 inches (46 mm)
Machining Specification	DrillingReamingTapping
Depth	BlindThrough
Coolant	DryOil BaseWater Base
Working Direction of Spindle	HorizontalStand UpStant DownVertical DownVertical Up
Type of Spindle	ASACollet
Type of Multi Spindle Head	Catch Clip TypeFixed Spindle Type
Requested Drilling and Tapping Unit	Selfeeder Synchotapper
Applicable Selfeeder	ES3P-4-1330L(LL)U ES3P-4-1327L(LL)U ES3P-4-1325L(LL)U ES3P-4-1322L(LL)U ES3P-4-1317L(LL)U ES3P-4-1315L(LL)U ES3P-4-1313L(LL)U ES3P-4-1310L(LL)U ES3P-4-1309L(LL)U ES3P-4-1307L(LL)U ES3P-2-1330L(LL)U ES3P-2-1326L(LL)U ES3P-2-1321L(LL)U ES3P-2-1318L(LL)U ES3P-2-1315L(LL)U ES3C-2-1314LU ES3C-2-1309LU ES3C-2-1305LU GSB-4-1330(L)U GSB-4-1323(L)U GSB-4-1315(L)U GSB-4-1310(L)U GSB-4-1307(L)U GSB-4-1306(L)U GSB-2-1330(L)U GSB-2-1320(L)U GSB-2-1315(L)U GSB-2-1312(L)U
