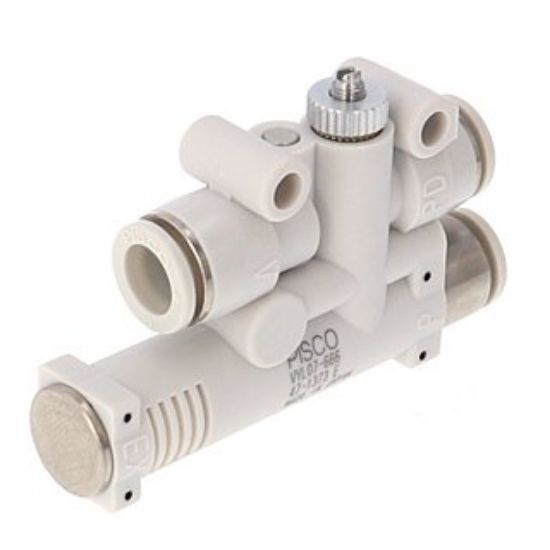

Pisco VYL07-666 Vacuum Generator VY

Pisco VYL07-666 Vacuum Generator VY
Manufacturer: Pisco
SKU: PS-VYL07-666
Manufacturer part number: VYL07-666

Pisco VYL07-666 Vacuum Generator VY

Size
Vacuum Port Tube Outer Diameter (V): 6mm
Air Supply Port Tube Outer Diameter (P): 6mm
Destructive Air Supply Port Tube Outer Diameter (PD): 6mm

Vacuum Characteristics
Large Flow Type
Nozzle Diameter: 0.7 mm
Reach vacuum degree: -66kPa
Suction flow rate: 21L/min(ANR)
Consumption flow rate: 23L/min(ANR)

Features
●Integrated vacuum generator and vacuum failure function.
- Compared to vacuum generators using ordinary solenoid valves, significant low price reduction is realized.

Specifications
● Fluid used: Air (JIS B8392-1: according to "Grade 1.2.1 to 2.4.3")
● Operating pressure range: 0.3 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 5 to 50°C

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
● Open ring: POM
● Seal rubber: NBR

Mass

19.5g
