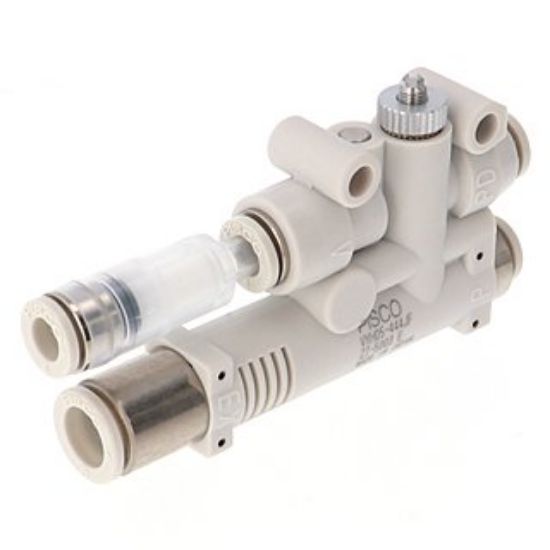

Pisco VYH05-444JF Vacuum Generator VY

Pisco VYH05-444JF Vacuum Generator VY
Manufacturer: Pisco
SKU: PS-VYH05-444JF
Manufacturer part number: VYH05-444JF

Pisco VYH05-444JF Vacuum Generator VY

Size
vacuum port tube outer diameter (V): 4mm
air supply port tube outer diameter (P): 4mm
exhaust port tube outer diameter (EX): 6mm
destructive air supply port tube outer diameter (PD): 4mm

Vacuum characteristics
high vacuum degree
nozzle diameter: 0.5mm
Arrival vacuum degree: -90kPa
Suction flow rate: 7L/min (ANR)
Consumption flow rate: 11.5L/min (ANR)

Features
● Integrated vacuum generator and vacuum failure function.
- Compared to vacuum generators using ordinary solenoid valves, significant low price reduction is realized.

Specifications
● Fluid used: Air (JIS B8392-1: according to "Grade 1.2.1 to 2.4.3")
● Operating pressure range: 0.3 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 5 to 50°C

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
● Open ring: POM
● Seal rubber: NBR

Mass

24g
