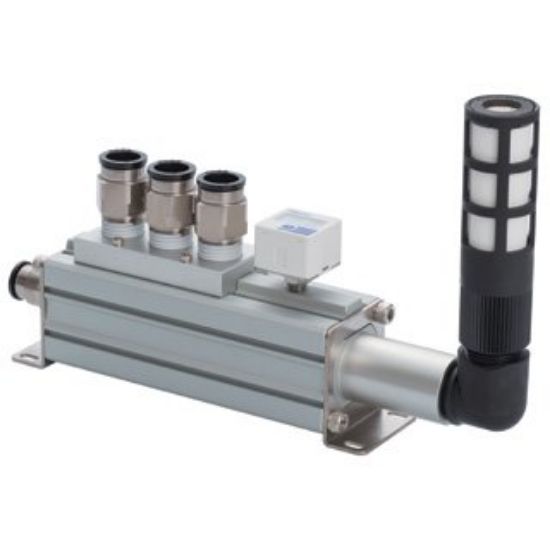

Pisco VVVE16-0402S-G Vacuum Generator VVV

Pisco VVVE16-0402S-G Vacuum Generator VVV

Size
Vacuum port screw size (V): Rc1/2
air supply port screw size (P): Rc1/4
exhaust port screw size (EX): Rc3/4 (with silencer)

Vacuum characteristics
Low supply pressure high vacuum type
Nozzle diameter: 1.6mm
Arrival vacuum degree: -90kPa
Suction flow rate: 180L/min (ANR)
Consumption flow rate: 105L/min(ANR)

Features
● Multi-stage nozzle ejector that secures high vacuum and large flow rate with a low supply pressure of 0.35 MPa.
● The vacuum port is easy to distribute 3 mouths.
● Recommended for work adsorption conveyance, vacuum packaging, defoaming and degassing. Adsorption conveyance is ideal for large heavy work and breathable workpieces such as the packaging industry and the automobile industry.
● Long life with simple maintenance.
● The vacuum take-out direction can be changed.
- Depending on the installation location, the exhaust take-out direction can be selected from straight and elbow.
- With digital presser gauge, it is easy to check the degree of vacuum.

Specifications
● Fluid used: Air
● Operating pressure range: 0.3 to 0.7 MPa
●Rated supply pressure: 0.35 MPa
●Operating temperature range: 5 to 50 °C (without freezing)

Material
● Metal body: Aluminum
●Resin body: PBT
●Seal rubber: NBR

Mass

1108g
