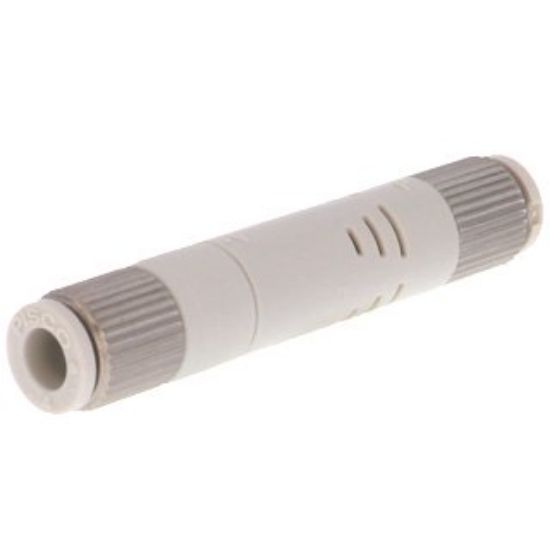

Pisco VUMH05-44 Vacuum Generator VU

Pisco VUMH05-44 Vacuum Generator VU
Manufacturer: Pisco
SKU: PS-VUMH05-44
Manufacturer part number: VUMH05-44

Pisco VUMH05-44 Vacuum Generator VU

Size
Vacuum Port Tube Outer Diameter (V): 4mm
Air Supply Port Tube Outer Diameter (P): 4mm

Vacuum Characteristics
High Vacuum Degree
Nozzle Diameter: 0.5mm
To Reach Vacuum Degree: -90kPa
Suction Flow Rate: 7L / min(ANR)
Consumption flow rate: 11.5 L/min(ANR)

Features
●Compressed air can be changed into a vacuum and used for conveying workpieces (things) by changing it into a vacuum and combining it with a vacuum pad.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
●Open ring: POM
●Seal rubber: NBR

Mass

6.8g
