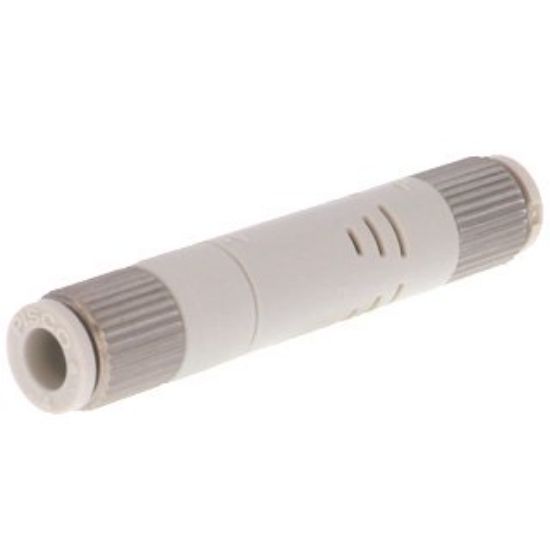

Pisco VUMH04-44 Vacuum Generator VU

Pisco VUMH04-44 Vacuum Generator VU

Size
vacuum port tube outer diameter (V): 4mm
air supply port tube outer diameter (P): 4mm

Vacuum characteristics
high vacuum degree nozzle
diameter: 0.4mm
Reach vacuum degree: -90kPa
Suction flow rate: 4L / min (ANR)
Consumption flow rate: 8 L / min (ANR)

Features
● Compressed air is changed to vacuum, and it can be used for conveying workpieces (things) by changing compressed air to vacuum.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
●Open ring: POM
●Seal rubber: NBR

Mass

6.8g
