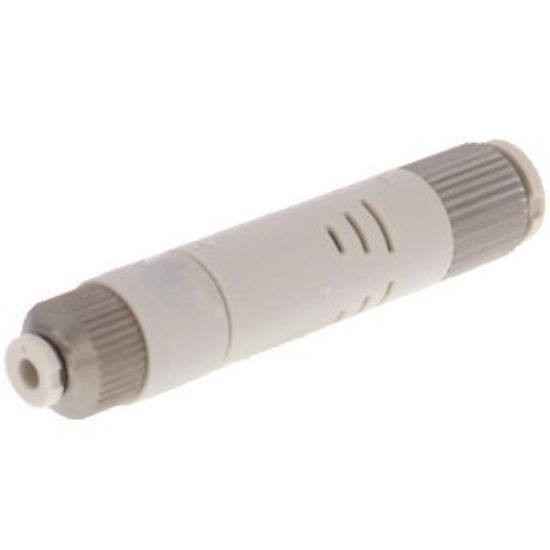

Pisco VUMH03-1804 Vacuum Generator VU

Pisco VUMH03-1804 Vacuum Generator VU

Size
vacuum port tube outer diameter (V): 1.8mm
air supply port tube outer diameter (P): 4mm

Vacuum characteristics
high vacuum degree nozzle
diameter: 0.3mm
Reach vacuum degree: -90kPa
Suction flow rate: 2L / min (ANR)
Consumption flow rate: 4.5 L / min (ANR)

Features
● Compressed air can be changed into a vacuum and used for conveying workpieces (things) by changing compressed air to vacuum and combining it with a vacuum pad.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
●Open ring: POM
●Seal rubber: NBR

Mass

6.5g
