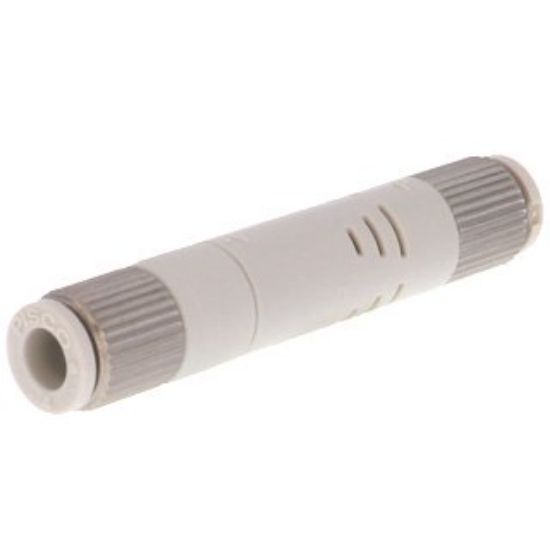

Pisco VUME04-44 Vacuum Generator VU

Pisco VUME04-44 Vacuum Generator VU
Manufacturer: Pisco
SKU: PS-VUME04-44
Manufacturer part number: VUME04-44

Pisco VUME04-44 Vacuum Generator VU

Size
vacuum port tube outer diameter (V): 4mm
air supply port tube outer diameter (P): 4mm

Vacuum characteristics
low supply pressure high vacuum degree
nozzle diameter: 0.4mm
Reach vacuum level: -90kPa
Suction flow rate: 2L/min(ANR)
Consumption flow rate: 6.5L/min(ANR)

Features
●Change compressed air into vacuum, Can be used for conveying workpieces (things) in combination with vacuum pads.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.35 MPa
● Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
●Open ring: POM
●Seal rubber: NBR

Mass

6.8g
