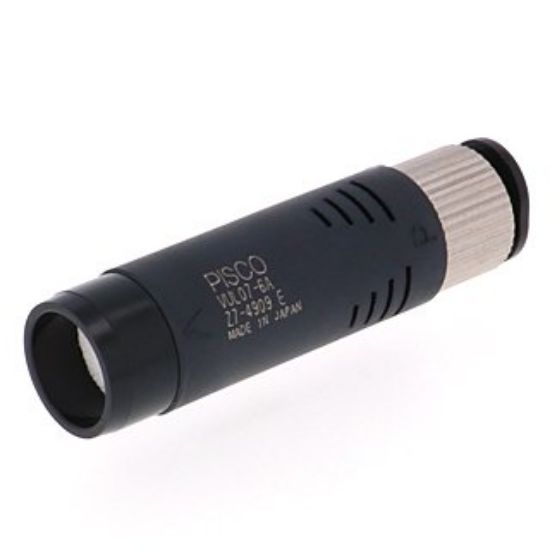

Pisco VUL07-6A Vacuum Generator VU

Pisco VUL07-6A Vacuum Generator VU

Size
Air supply port tube outer diameter (P): 6mm

Vacuum characteristics
large flow type
nozzle diameter: 0.7mm
To reach vacuum degree: -66kPa
Suction flow rate: 22L/min(ANR)
Consumption flow rate: 23L/min(ANR)

Features
●Compressed air can be changed into a vacuum and combined with a vacuum pad to convey workpieces (things).

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
●Open ring: POM
●Seal rubber: NBR

Mass

12g
