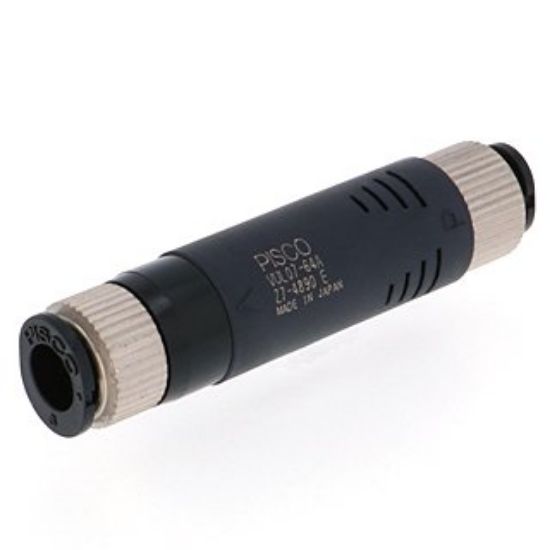

Pisco VUL07-64A Vacuum Generator VU

Pisco VUL07-64A Vacuum Generator VU
Manufacturer: Pisco
SKU: PS-VUL07-64A
Manufacturer part number: VUL07-64A

Pisco VUL07-64A Vacuum Generator VU

Size
vacuum port tube outer diameter (V): 6mm
air supply port tube outer diameter (P): 4mm

Vacuum characteristics
large flow type
nozzle diameter: 0.7mm
Reach vacuum degree: -66kPa
Suction flow rate: 22L / min (ANR)
Consumption flow rate: 23L / min (ANR)

Features
● Compressed air is changed into a vacuum, and it can be used for conveying workpieces (things) by changing compressed air to vacuum and combining it with a vacuum pad.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
●Open ring: POM
●Seal rubber: NBR

Mass

18.5g
