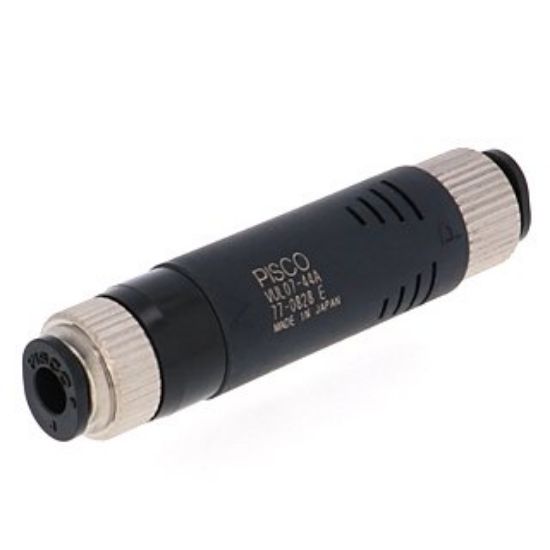

Pisco VUL07-44A Vacuum Generator VU

Pisco VUL07-44A Vacuum Generator VU

Size
Vacuum Port Tube Outer Diameter (V): 4mm
Air Supply Port Tube Outer Diameter (P): 4mm

Vacuum Characteristics
Large Flow Type
Nozzle Diameter: 0.7mm
Reaching Vacuum Degree: -66kPa
Suction Flow Rate: 20L / min(ANR)
Consumption flow rate: 23L/min(ANR)

Features
● Compressed air can be changed into a vacuum and used for conveying workpieces (things) by combining it with a vacuum pad.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
● Open ring: POM
● Seal rubber: NBR

Mass

20g
