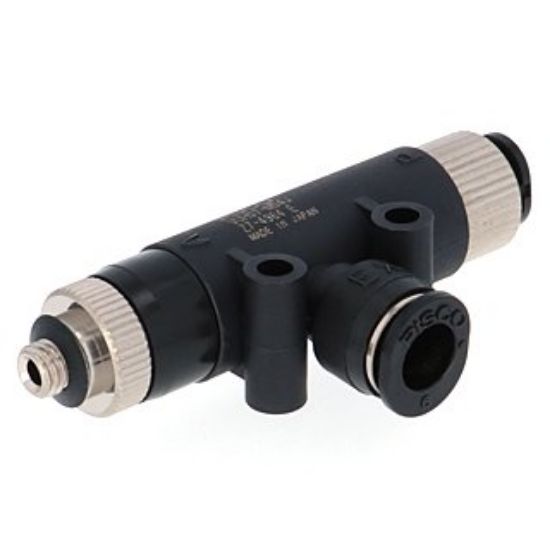

Pisco VUH07-M54J Vacuum Generator VU

Pisco VUH07-M54J Vacuum Generator VU

Size
vacuum port screw size (V): M5×0.8
air supply port tube outer diameter (P): 4mm
exhaust port tube outer diameter (EX): 6mm

Vacuum characteristics
High vacuum nozzle
diameter: 0.7mm
Arrival vacuum degree: -92kPa
Suction flow rate: 12.5L/min(ANR)
Consumption flow rate: 23L/min(ANR)

Features
● Compressed air can be changed into a vacuum and used for conveying workpieces (things) by combining it with a vacuum pad.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
● Open ring: POM
● Seal rubber: NBR

Mass

21g
