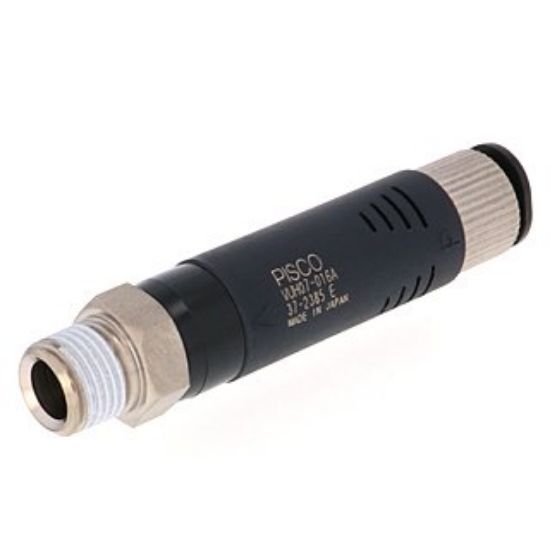

Pisco VUH07-016A Vacuum Generator VU

Pisco VUH07-016A Vacuum Generator VU

Size
Vacuum port screw size (V): R1/8
Air supply port tube outer diameter (P): 6mm

Vacuum characteristics
High vacuum degree
nozzle diameter: 0.7mm
Reach vacuum degree: -92kPa
Suction flow rate: 12.5 L /min (ANR)
Consumption flow rate: 23L / min (ANR)

Features
● Compressed air can be changed into a vacuum and used for conveying workpieces (things) by changing compressed air to vacuum.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
● Open ring: POM
●Seal rubber: NBR

Mass

20.5g
