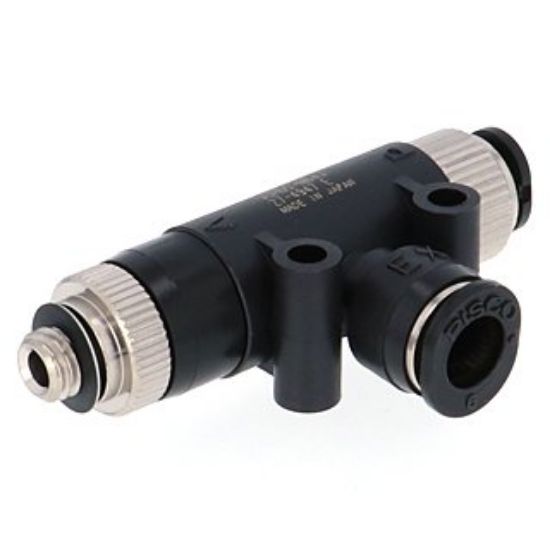

Pisco VUH05-M64J Vacuum Generator VU

Pisco VUH05-M64J Vacuum Generator VU

Size
vacuum port screw size (V): M6×1
air supply port tube outer diameter (P): 4mm
exhaust port tube outer diameter (EX): 6mm

Vacuum characteristics
High vacuum nozzle
diameter: 0.5mm
Arrival vacuum degree: -90kPa
Suction flow rate: 7L/min (ANR)
Consumption flow rate: 11.5L/min (ANR)

Features
●Change compressed air into vacuum Can be used for conveying workpieces (things) in combination with vacuum pads.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
● Open ring: POM
● Seal rubber: NBR

Mass

20g
