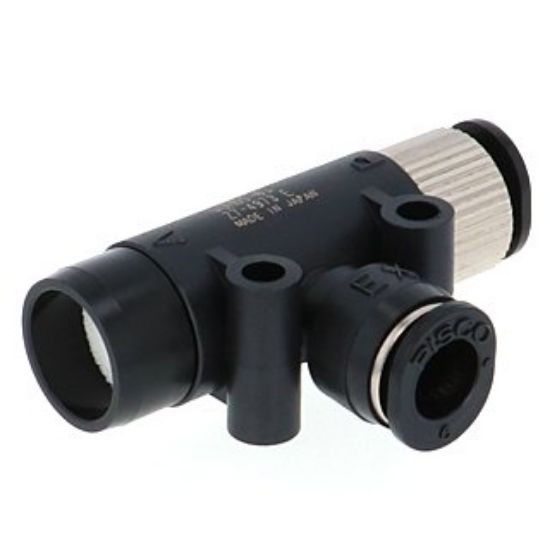

Pisco VUH05-6J Vacuum Generator VU

Pisco VUH05-6J Vacuum Generator VU

Size
Air supply port tube outer diameter (P): 6mm
Exhaust port tube outer diameter (EX): 6mm

Vacuum characteristics
High vacuum degree nozzle
diameter: 0.5mm
Reach vacuum degree: -90kPa
Suction flow rate: 7L / min (ANR)
Consumption flow rate: 11.5 L / min (ANR)

Features
● Compressed air can be changed into a vacuum and used for conveying workpieces (things) by changing compressed air to vacuum.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
● Open ring: POM
● Seal rubber: NBR

Mass

13g
