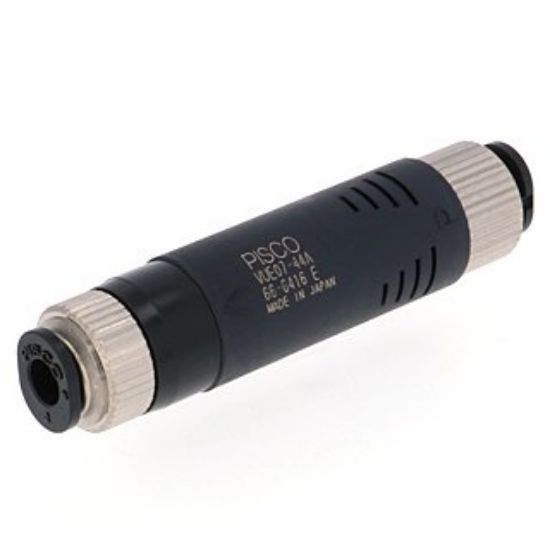

Pisco VUE07-44A Vacuum Generator VU

Pisco VUE07-44A Vacuum Generator VU

Size
Vacuum Port Tube Outer Diameter (V): 4mm
Air Supply Port Tube Outer Diameter (P): 4mm

Vacuum Characteristics
Low Supply Pressure High Vacuum Degree
Nozzle Diameter: 0.7mm
To Reach Vacuum Degree: -90kPa
Suction flow rate: 10 L / min (ANR)
Consumption flow rate: 17 L / min (ANR)

Features
● Compressed air can be changed into a vacuum and used for conveying workpieces (things) by changing compressed air to vacuum.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.35 MPa
● Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
● Open ring: POM
●Seal rubber: NBR

Mass

20.5g
