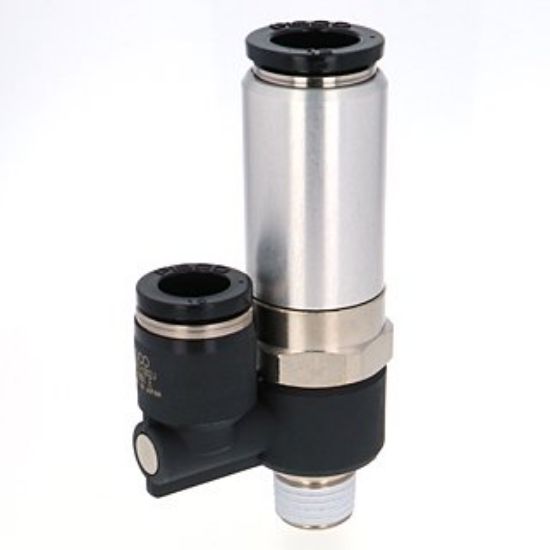

Pisco VSH15-1002J Vacuum Generator VS

Pisco VSH15-1002J Vacuum Generator VS

Size
vacuum port tube outer diameter (V): 10mm
air supply port screw size (P): R1/4
exhaust port tube outer diameter (EX): 12mm

Vacuum characteristics
High vacuum type
Nozzle diameter: 1.5mm
Arrival vacuum degree: -93kPa
Suction flow rate: 63L/min (ANR)
Consumption flow rate: 100L/min (ANR)

Features
●Change compressed air into vacuum Can be used for conveying workpieces (things) in combination with vacuum pads.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating, aluminum
●Open ring: POM
●Seal rubber: NBR

Mass

97.5g
